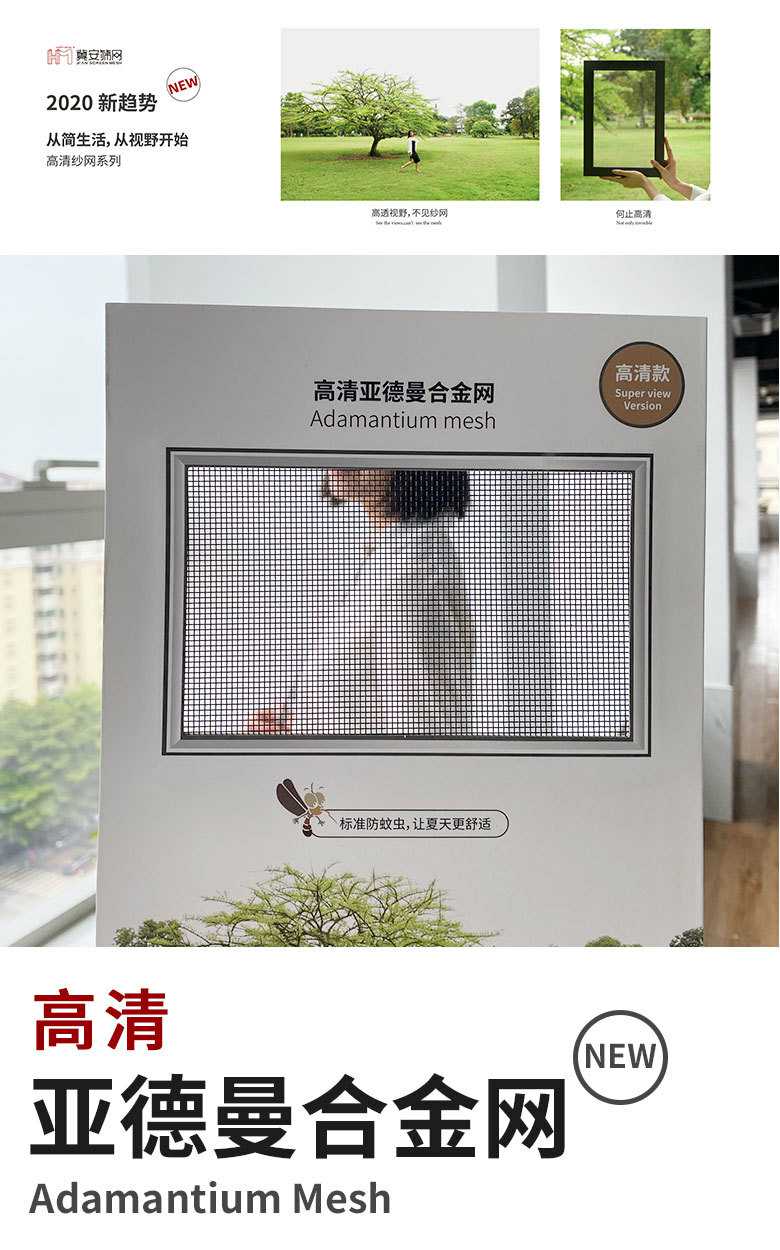

產品名稱：高清亞德曼合金網 HD Adamantium security mesh
品牌名稱：冀安篩網JI'AN MESH
產品材質：亞德曼
Material類型(材質): 熱鍍鋅合金 Hot-Dip Galvanized alloy
Process工序：拔絲工藝 Wire drawing process
Warp thread count 經線密度：18目 Mesh
Weft thread count 緯線密度：18目 Mesh
Warp yarn diameter 經線絲徑：0.25mm +0.03/-0.03mm
Weft yarn diameter 緯線絲徑：0.25mm +0.03/-0.03mm
Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：0.65kg
Elogation (%)延展率(%)：≥9%
Coating涂層：復合樹脂 Composite resin
Tensile strength（MPa）抗拉強度（MPa）：800-880MPa
Coating Process 噴涂工藝：靜電噴涂 Electrostatic spraying
Coating thickness（μm）涂層厚度（μm）：50μm
Curing conditions 固化條件：200°C / 4.2m/min Color顏色：黑色 Black
Packing包裝：編織袋 Woven bag
Material類型(材質): 熱鍍鋅合金 Hot-Dip Galvanized alloy
Process工序：拔絲工藝 Wire drawing process

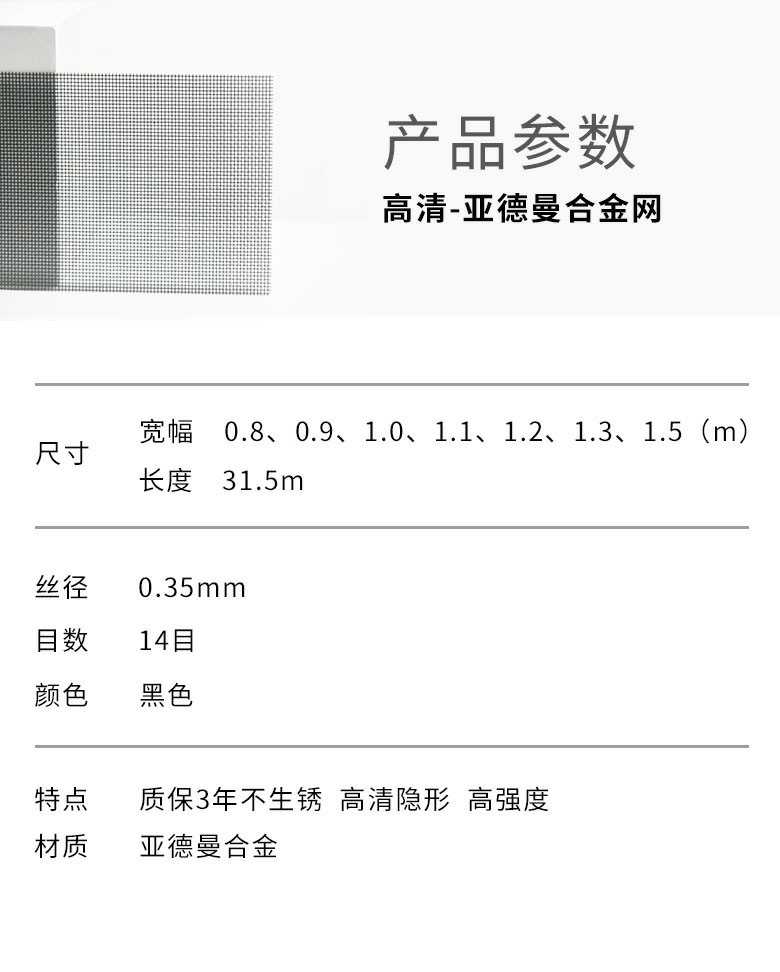

Warp thread count 經線密度：14目 Mesh
Weft thread count 緯線密度：14目 Mesh

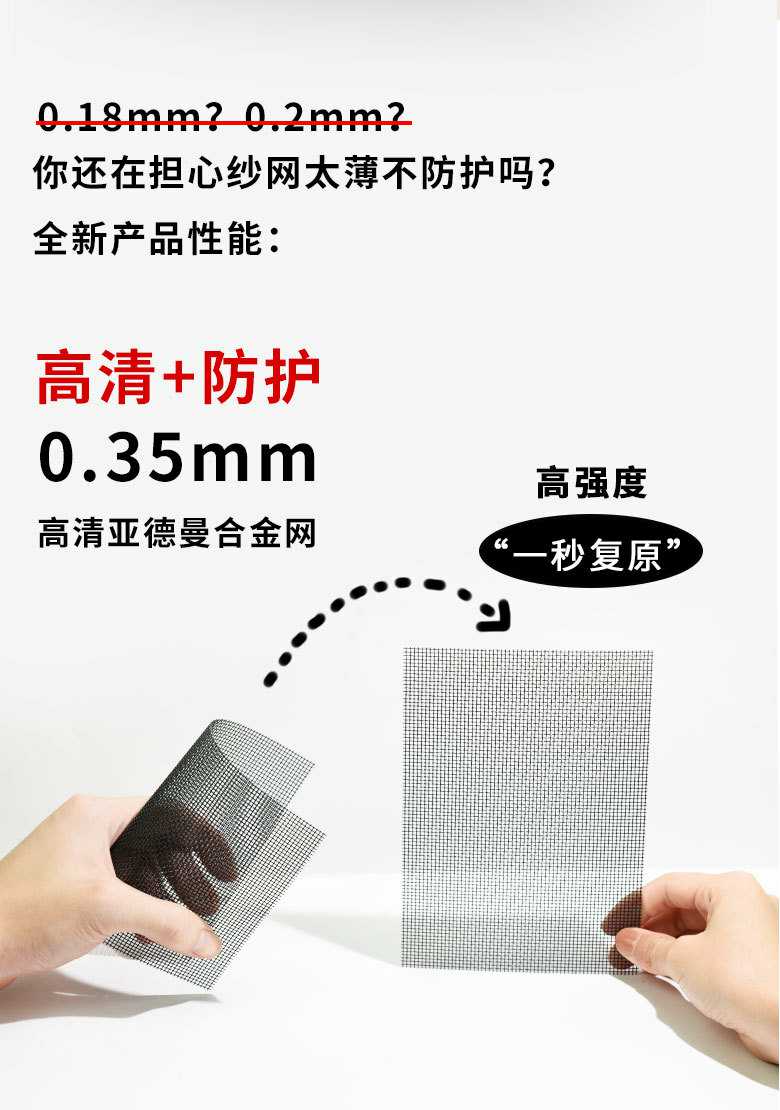

Warp yarn diameter 經線絲徑：0.35mm +0.03/-0.03mm
Weft yarn diameter 緯線絲徑：0.35mm +0.03/-0.03mm
Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：1.1kg
Elogation (%)延展率(%)：≥10%
Coating涂層：復合樹脂 Composite resin
Tensile strength（MPa）抗拉強度（MPa）：800-880MPa
Coating Process 噴涂工藝：靜電噴涂 Electrostatic spraying
Coating thickness（μm）涂層厚度（μm）：50μm
Curing conditions 固化條件：200°C / 4.2m/min Color顏色：黑色 Black
Packing包裝：編織袋 Woven bag
Product Features產品特點：亞德曼合金網以高性?xún)r(jià)比為主要賣點，在同等參數下，其抗拉強度為304不銹鋼的兩倍，僅需304材料一半厚度即可實現接近的防護性能。由于強度極高，即使在運輸或加工過程中遭受磕碰或摔落，產品也不會出現網面波浪或凹陷問題，這是304材料難以實現的優勢。此外，該產品主要成分為鋅合金，價格長期穩定，不受304不銹鋼市場價格波動的影響。測試結果顯示，其抗腐蝕性能與304不銹鋼相當，在1300小時的中性鹽霧測試后才出現氧化生銹反應。為進一步提升防腐性能，亞德曼合金網采用了電泳涂層與靜電粉末噴涂的雙重工藝。電泳涂層致密性高，可有效隔絕空氣中的水分，對絲表面形成強力保護，再輔以靜電粉末噴涂，大大增強了產品的抗腐蝕能力。
Adamaitum Mesh stands out for its high cost-effectiveness. With twice the tensile strength of 304 stainless steel, it achieves similar protection with only half the material thickness. Its high strength ensures the mesh remains free of waves or dents during transport or processing, which is difficult for 304 stainless steel. Made primarily from zinc alloy, the mesh offers stable pricing unaffected by stainless steel market fluctuations. Tests show it provides comparable corrosion resistance to 304 stainless steel, with oxidation only appearing after 1300 hours of neutral salt spray testing. To further enhance durability, it features dual coatings: an electrophoretic layer to block moisture and a powder coating for added corrosion resistance.
