產品名稱：金剛網（304/316）Standard security mesh
品牌名稱：冀安篩網 JI'AN MESH
產品材質：國標304 / 國標316L
Material類型(材質): 304不銹鋼 304 Stainless steel

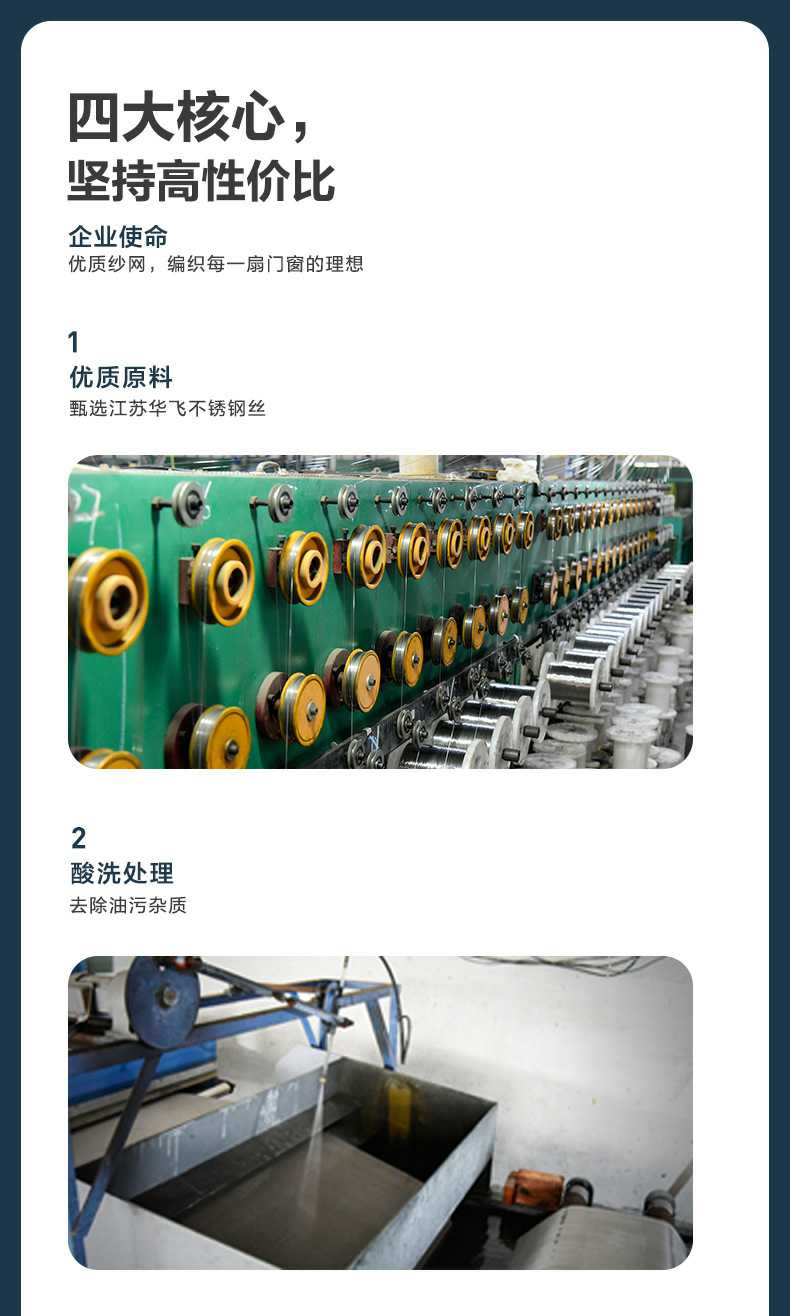

Process工序：拔絲工藝 Wire drawing process

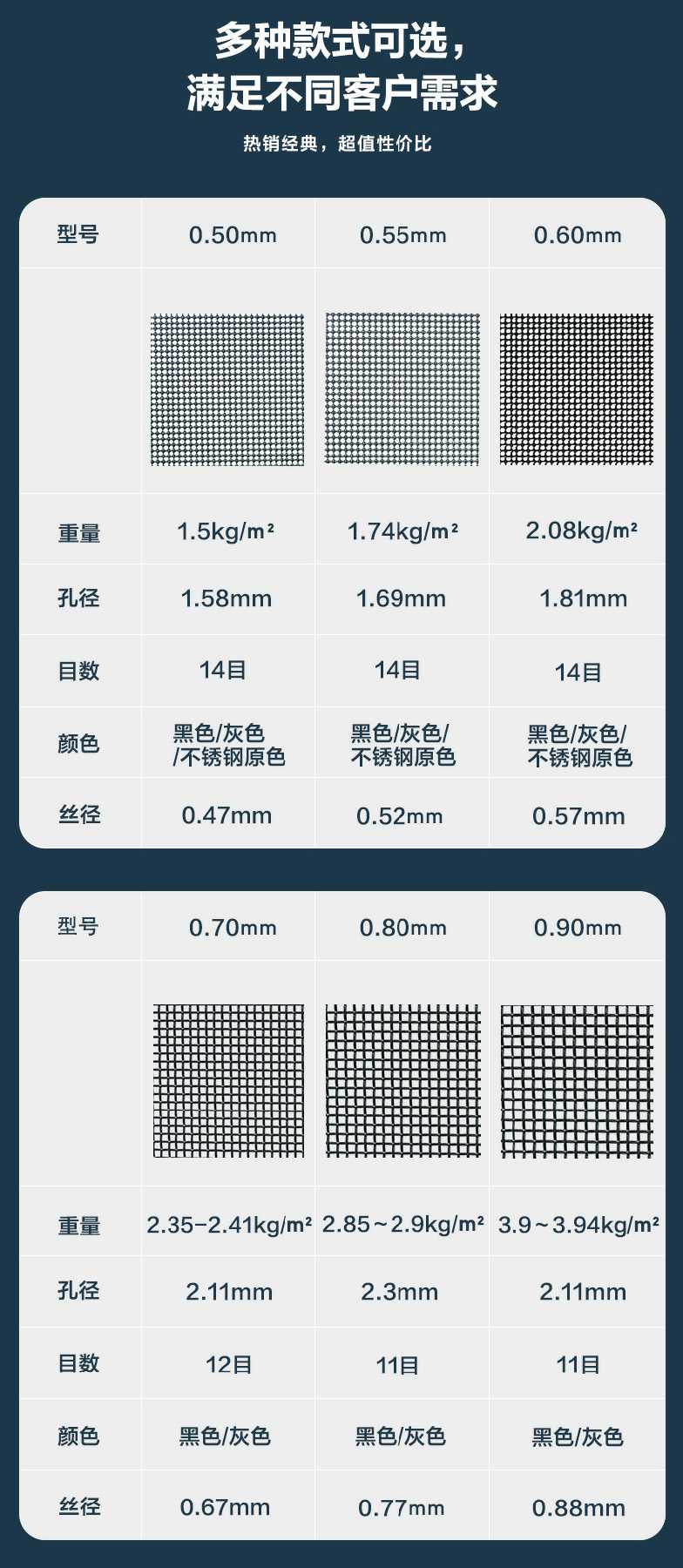

Warp thread count 經線密度：18目 Mesh
Weft thread count 緯線密度：18目 Mesh
Warp wire diameter 經線絲徑：0.33mm +0.03/-0.03mm
Weft wire diameter 緯線絲徑：0.33mm +0.03/-0.03mm

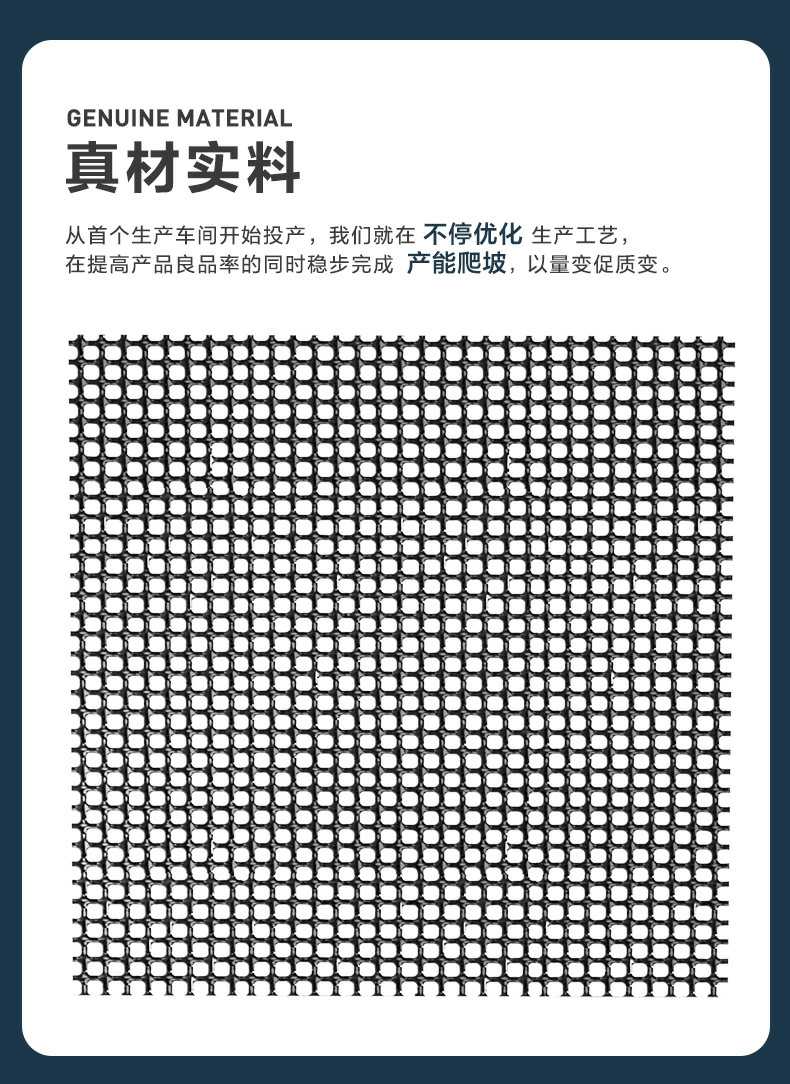

Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：1.05kg
Elogation (%)延展率(%)：45-55%
Coating涂層：復合樹脂 Composite resin
Tensile strength（MPa）抗拉強度（MPa）：700-740MPa

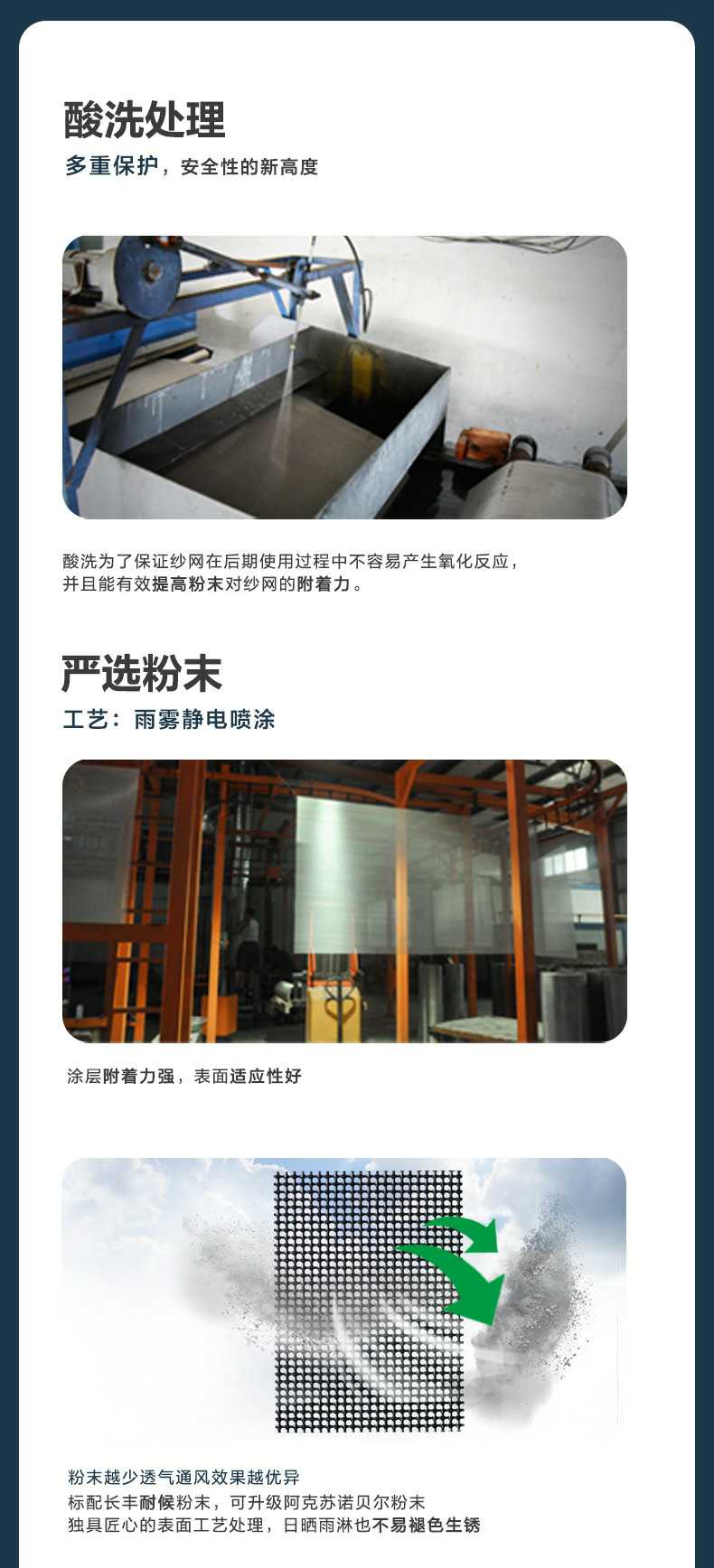

Coating Process 噴涂工藝：靜電噴涂 Electrostatic spraying
Coating thickness（μm）涂層厚度（μm）：40μm
Curing conditions 固化條件：200°C / 5.25m/min 立爐 Vertical coating equipment
Color顏色：黑色 Black/灰色Gray
Packing包裝：編織袋 Woven bag
Ventilation rate通風率：50%
Open area ratio開孔率：50%
Aperture size孔徑：1100μm
Light transmittance透光率：56%
Ultraviolet blocking rate紫外線阻隔率：55%
Infrared blocking rate紅外線阻隔率：50%
Material類型(材質): 304不銹鋼 304 Stainless steel
Process工序：拔絲工藝 Wire drawing process
Warp thread count 經線密度：15目 Mesh
Weft thread count 緯線密度：15目 Mesh
Warp wire diameter 經線絲徑：0.41mm +0.03/-0.03mm
Weft wire diameter 緯線絲徑：0.41mm +0.03/-0.03mm
Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：1.27kg
Elogation (%)延展率(%)：45-55%
Coating涂層：復合樹脂 Composite resin
Tensile strength（MPa）抗拉強度（MPa）：700-740MPa
Coating Process 噴涂工藝：靜電噴涂 Electrostatic spraying
Coating thickness（μm）涂層厚度（μm）：40μm
Curing conditions 固化條件：200°C / 5.25m/min 立爐 Vertical coating equipment
Color顏色：黑色 Black/灰色Gray
Packing包裝：編織袋 Woven bag
Ventilation rate通風率：41%
Open area ratio開孔率：41%
Aperture size孔徑：1600μm
Light transmittance透光率：51%
Ultraviolet blocking rate紫外線阻隔率：61%
Infrared blocking rate紅外線阻隔率：60%
Material類型(材質): 304不銹鋼 304 Stainless steel
Process工序：拔絲工藝 Wire drawing process
Warp thread count 經線密度：13目 Mesh
Weft thread count 緯線密度：13目 Mesh
Warp wire diameter 經線絲徑：0.45mm +0.03/-0.03mm
Weft wire diameter 緯線絲徑：0.45mm +0.03/-0.03mm
Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：1.45kg
Elogation (%)延展率(%)：45-55%
Coating涂層：復合樹脂 Composite resin
Tensile strength（MPa）抗拉強度（MPa）：700-740MPa
Coating Process 噴涂工藝：靜電噴涂 Electrostatic spraying
Coating thickness（μm）涂層厚度（μm）：40μm
Curing conditions 固化條件：200°C / 5.25m/min 立爐 Vertical coating equipment
Color顏色：黑色 Black/灰色Gray
Packing包裝：編織袋 Woven bag
Ventilation rate通風率：40%
Open area ratio開孔率：40%
Aperture size孔徑：1180μm
Light transmittance透光率：51%
Ultraviolet blocking rate紫外線阻隔率：60%
Infrared blocking rate紅外線阻隔率：54%
Material類型(材質): 304不銹鋼 304 Stainless steel
Process工序：拔絲工藝 Wire drawing process
Warp thread count 經線密度：13目 Mesh
Weft thread count 緯線密度：13目 Mesh
Warp wire diameter 經線絲徑：0.56mm +0.03/-0.03mm
Weft wire diameter 緯線絲徑：0.56mm +0.03/-0.03mm
Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：2.03kg
Elogation (%)延展率(%)：45-55%
Coating涂層：復合樹脂 Composite resin
Tensile strength（MPa）抗拉強度（MPa）：700-740MPa
Coating Process 噴涂工藝：靜電噴涂 Electrostatic spraying
Coating thickness（μm）涂層厚度（μm）：40μm
Curing conditions 固化條件：200°C / 5.25m/min 立爐 Vertical coating equipment
Color顏色：黑色 Black/灰色Gray
Packing包裝：編織袋 Woven bag
Ventilation rate通風率：36%
Open area ratio開孔率：36%
Aperture size孔徑：1220μm
Light transmittance透光率：50%
Ultraviolet blocking rate紫外線阻隔率：63%
Infrared blocking rate紅外線阻隔率：61%
Material類型(材質): 304不銹鋼 304 Stainless steel
Process工序：拔絲工藝 Wire drawing process
Warp thread count 經線密度：12目 Mesh
Weft thread count 緯線密度：11.5目 Mesh
Warp wire diameter 經線絲徑：0.63mm +0.03/-0.03mm
Weft wire diameter 緯線絲徑：0.63mm +0.03/-0.03mm
Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：2.25kg
Elogation (%)延展率(%)：45-55%
Coating涂層：復合樹脂 Composite resin
Tensile strength（MPa）抗拉強度（MPa）：700-740MPa
Coating Process 噴涂工藝：靜電噴涂 Electrostatic spraying
Coating thickness（μm）涂層厚度（μm）：50μm
Curing conditions 固化條件：200°C / 5.25m/min 立爐 Vertical coating equipment
Color顏色：黑色 Black/灰色Gray
Packing包裝：編織袋 Woven bag
Ventilation rate通風率：43%
Open area ratio開孔率：43%
Aperture size孔徑：1450μm
Light transmittance透光率：50%
Ultraviolet blocking rate紫外線阻隔率：63%
Infrared blocking rate紅外線阻隔率：56%
Material類型(材質): 304不銹鋼 304 Stainless steel
Process工序：拔絲工藝 Wire drawing process
Warp thread count 經線密度：11目 Mesh
Weft thread count 緯線密度：10.5目 Mesh
Warp wire diameter 經線絲徑：0.73mm +0.03/-0.03mm
Weft wire diameter 緯線絲徑：0.73mm +0.03/-0.03mm
Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：2.75kg
Elogation (%)延展率(%)：45-55%
Coating涂層：復合樹脂 Composite resin
Tensile strength（MPa）抗拉強度（MPa）：700-740MPa
Coating Process 噴涂工藝：靜電噴涂 Electrostatic spraying
Coating thickness（μm）涂層厚度（μm）：50μm
Curing conditions 固化條件：200°C / 5.25m/min 立爐 Vertical coating equipment
Color顏色：黑色 Black/灰色Gray
Packing包裝：編織袋 Woven bag
Ventilation rate通風率：42%
Open area ratio開孔率：42%
Aperture size孔徑：1620μm
Light transmittance透光率：50%
Ultraviolet blocking rate紫外線阻隔率：64%
Infrared blocking rate紅外線阻隔率：58%
Material類型(材質): 304不銹鋼 304 Stainless steel
Process工序：拔絲工藝 Wire drawing process
Warp thread count 經線密度：11目 Mesh
Weft thread count 緯線密度：10.5目 Mesh
Warp wire diameter 經線絲徑：0.88mm +0.03/-0.03mm
Weft wire diameter 緯線絲徑：0.88mm +0.03/-0.03mm
Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：3.75kg
Elogation (%)延展率(%)：45-55%
Coating涂層：復合樹脂 Composite resin
Tensile strength（MPa）抗拉強度（MPa）：700-740MPa
Coating Process 噴涂工藝：靜電噴涂 Electrostatic spraying
Coating thickness（μm）涂層厚度（μm）：50μm
Curing conditions 固化條件：200°C / 5.25m/min 立爐 Vertical coating equipment
Color顏色：黑色 Black/灰色Gray
Packing包裝：編織袋 Woven bag
Ventilation rate通風率：40%
Open area ratio開孔率：40%
Aperture size孔徑：1400μm
Light transmittance透光率：37%
Ultraviolet blocking rate紫外線阻隔率：69%
Infrared blocking rate紅外線阻隔率：68%

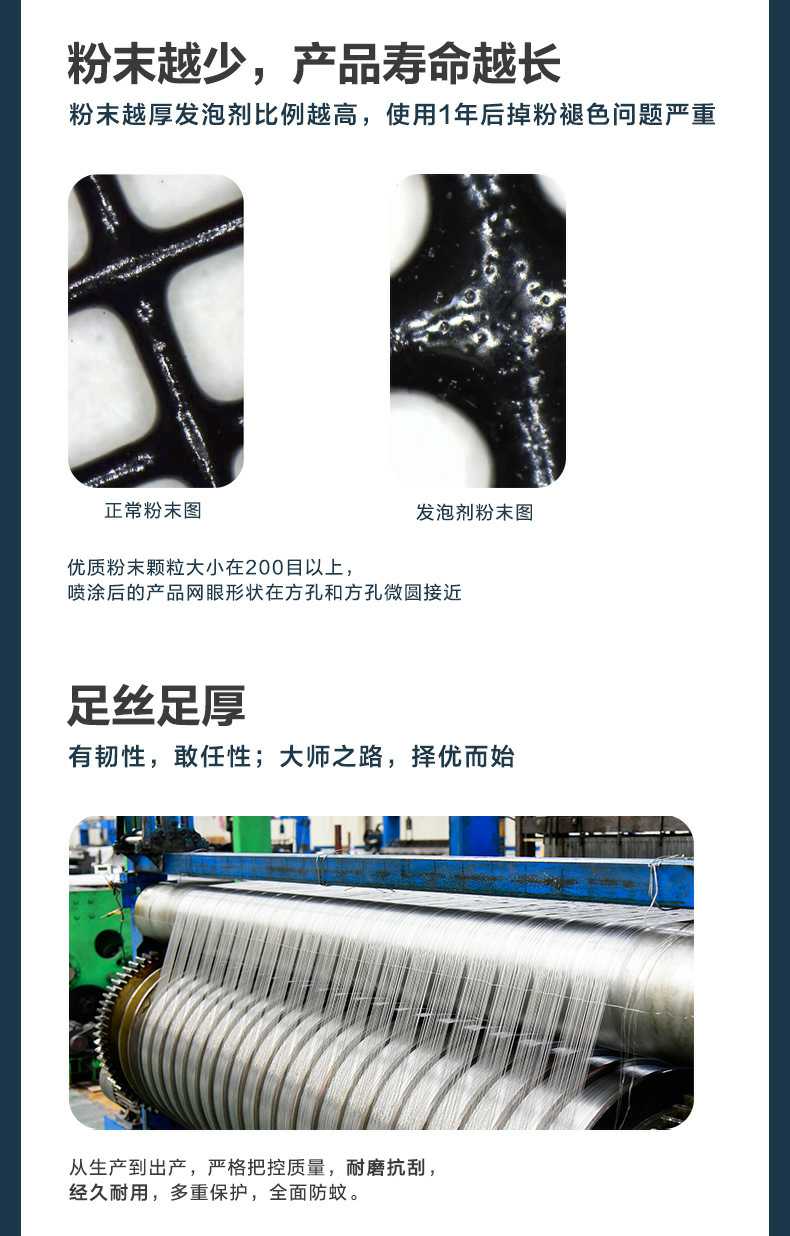

Product Features產品特點：金剛網自2008年在中國大規模生產和銷售，至今已有15年以上的生產經驗，確保了產品的質量與出廠品質。該產品采用靜電粉末噴涂工藝，有效包裹絲徑，提升抗腐蝕能力，但需控制粉末厚度，過厚的粉末會使網孔呈圓形，影響透光率和通風效果。產品的線徑越粗，防護性能越好，但網孔也會相應變大，防蚊效果略有下降。為達到理想的防護效果，線徑需在0.8mm以上，線徑過細則防護性能不佳。
Stainless Steel Security Mesh has been mass-produced and sold in China since 2008, with over 15 years of production experience ensuring product quality. It uses an electrostatic powder coating process that effectively enhances corrosion resistance by covering the wire. However, the powder thickness must be controlled, as too much can round the mesh openings, reducing light transmission and airflow. Thicker wires offer better protection, but larger openings may reduce mosquito prevention. For optimal protection, the wire thickness should be over 0.8mm, as thinner wires provide less security.
