產品名稱：暖邊條Warm Edge Spacer Bar
品牌：冀安篩網 JI'AN MESH
產品材質：不銹鋼、AGR、PVC、玻纖
產品名稱：AGR暖邊間隔條 AGR Warm Edge Spacer Bar
品牌名稱：冀安篩網 JI'AN MESH
產品材質：丙烯酸共聚聚氯乙烯 Ackylic Graft Resin
Product Name產品名稱：AGR復合暖邊條 Warm Edge Spacer Bar
Material材質：醫療級不銹鋼+丙烯酸共聚聚氯乙烯

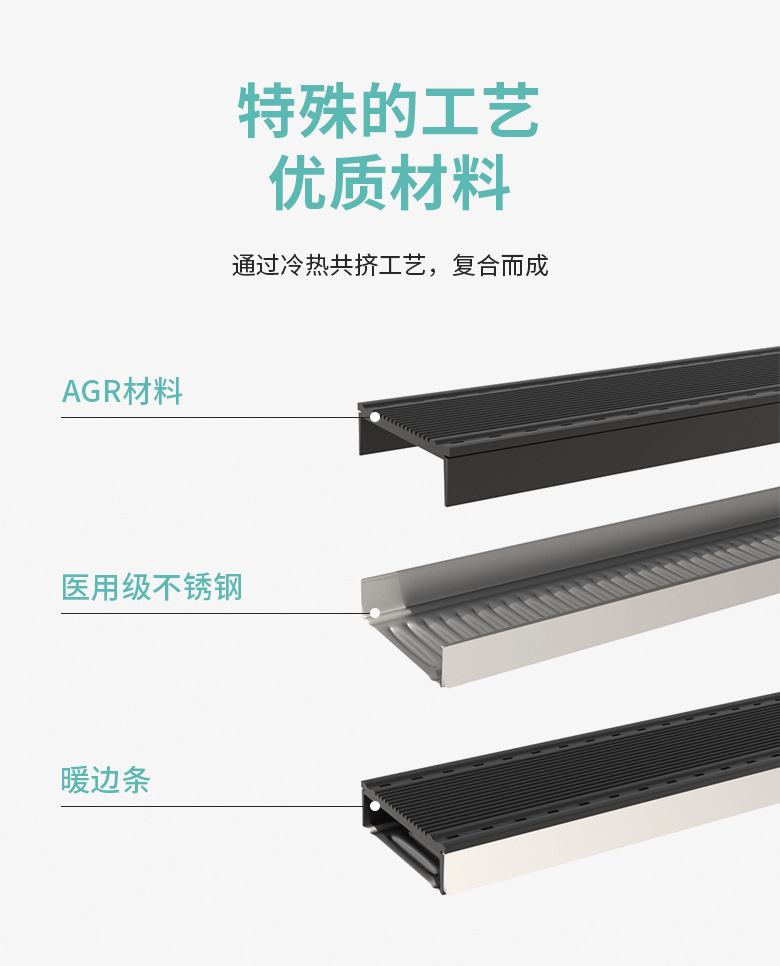

Manufacturing Process制造工藝：冷熱共擠

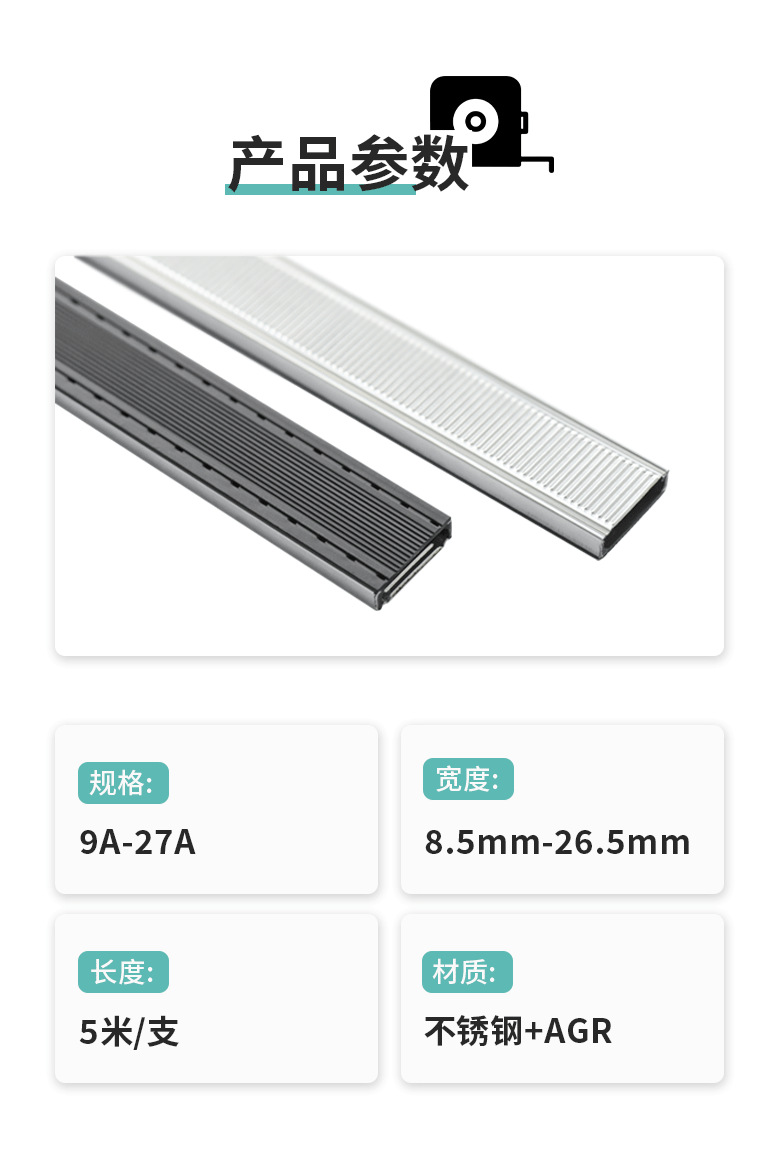

Width Standard寬度標準：5.5mm-26.5mm
Wall Thickness Range壁厚范圍：不銹鋼0.21mm，AGR:1.0mm
Thermal Conductivity Coefficient導熱系數：≤0.007W/(m·K)
Linear Expansion Coefficient線性膨脹系數：（8-12）×10??/℃
Flame Retardancy阻燃性：符合美標UL94VO
Weather Resistance耐候性：符合美標UL746
Toxic Substance Emissions有毒物質揮發：符合瑞標SGS
Tensile Strength拉伸強度：≥30MPa
Temperature Resistance Range耐候性 (溫度范圍)：-40℃~+80℃
Installation Standard安裝標準：可支持冷折彎

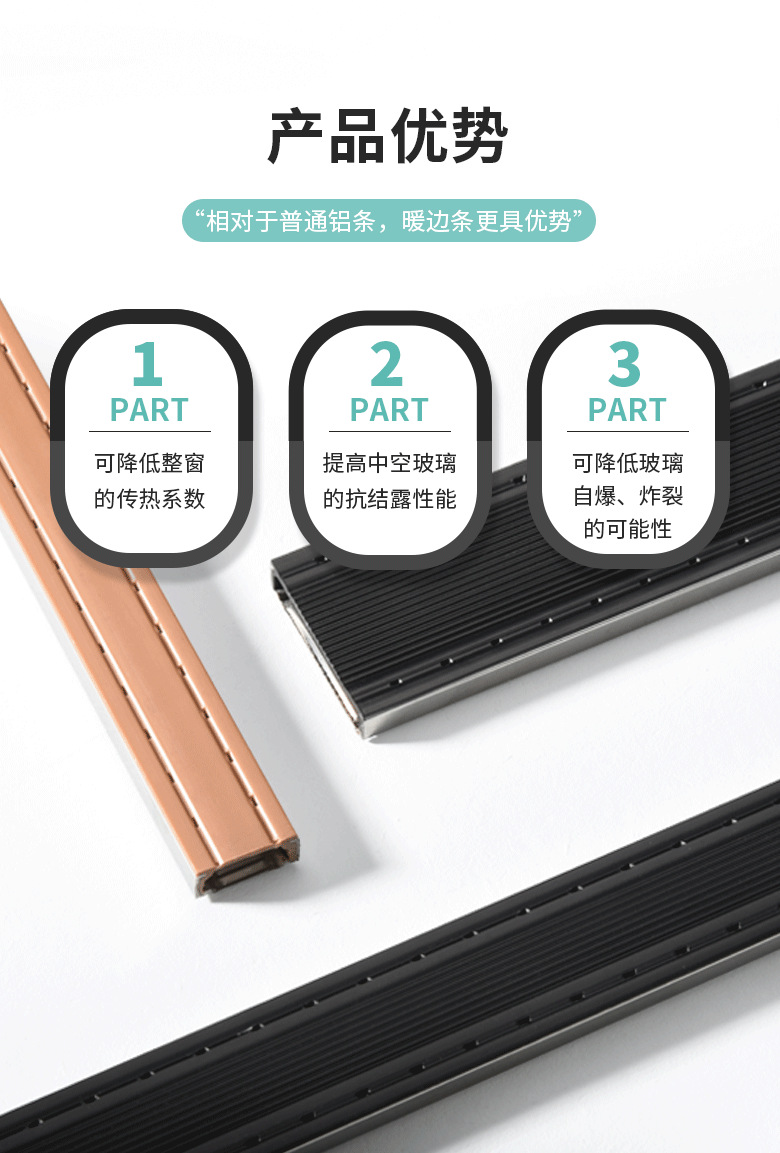

特點：AGR暖邊間隔條采用行內最先進的生產設備，成熟的合片工藝，產品實現零熱開膠；產品通過了最嚴格的TUR，羅森海姆等檢測;在具備低導熱特性的同時還有很高的強度，可以滿足不同場合。與鋁制間隔條在加工設備上具有良好的通用性。背面齒輪狀設計，增加了受力，使得其不易變形，便于折彎、打膠、合片。最大限度地減少玻璃和窗戶上的冷凝現象，避免間隔框的腐蝕損傷。能有效降低溫度應力，大幅降低玻璃自爆率。
The AGR warm edge spacer bar is manufactured using industry-leading production equipment and a mature lamination process, achieving zero delamination under thermal stress.

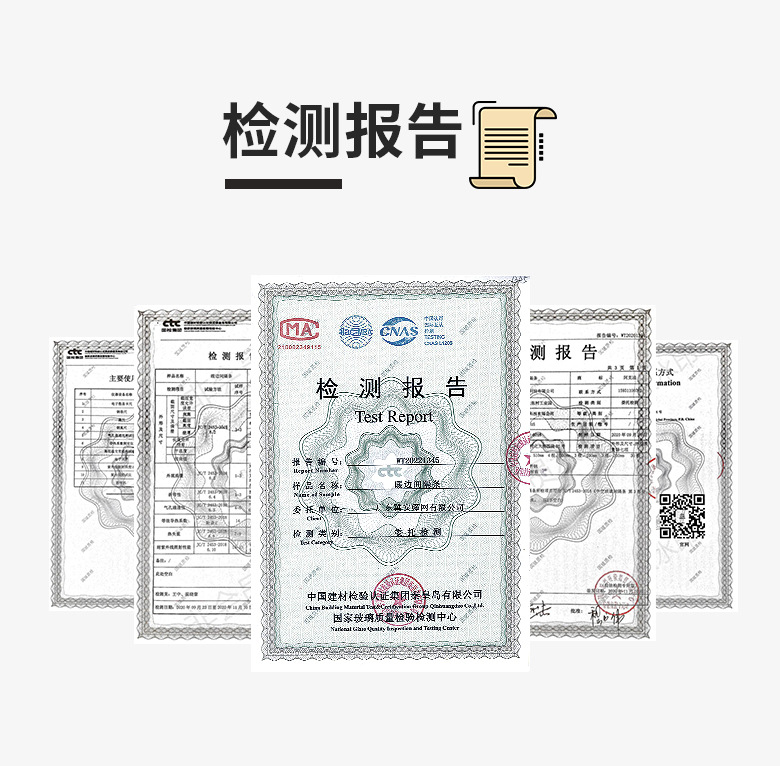

The product has passed the most stringent certifications, including TüV and Rosenheim tests, while combining low thermal conductivity with high structural strength to meet diverse application requirements.
It is fully compatible with standard aluminum spacer processing equipment. The gear-shaped pattern on its backside enhances load-bearing capacity, resists deformation, and facilitates bending, sealing, and assembly.

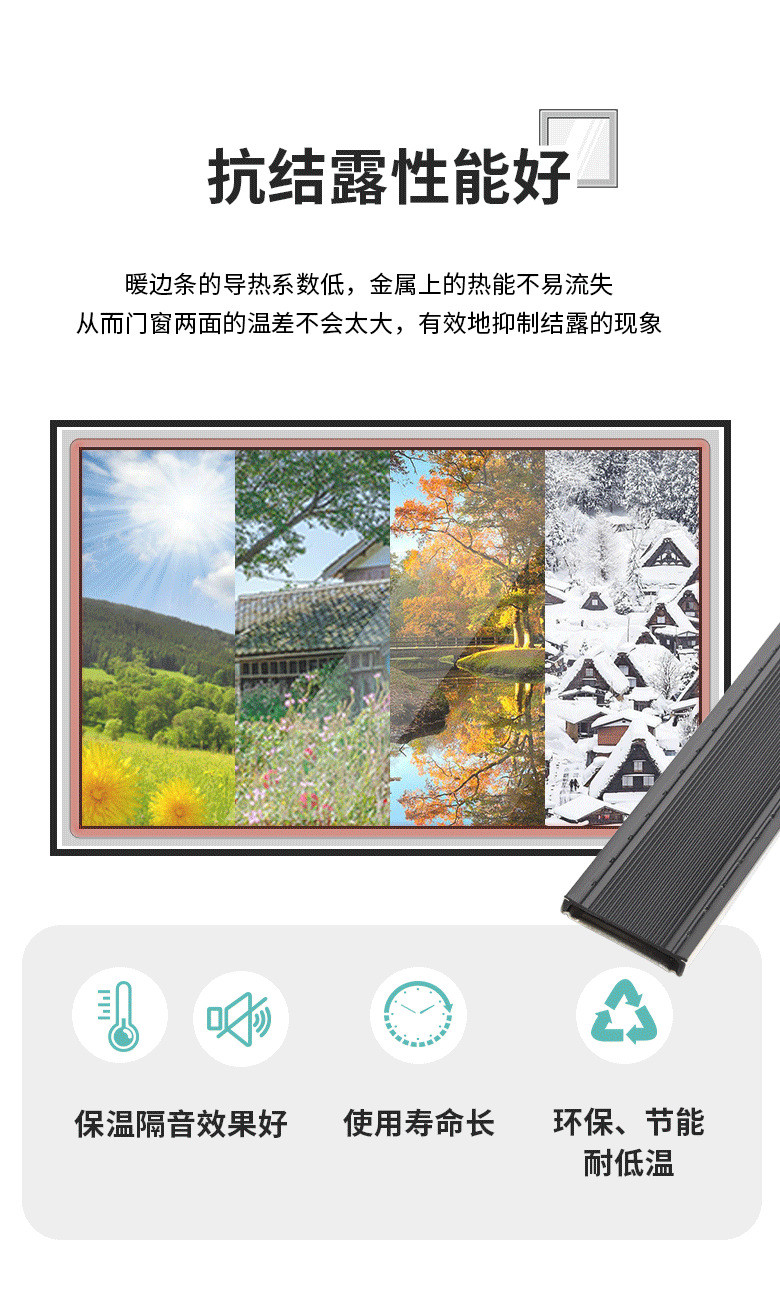

It minimizes condensation on glass and window surfaces, prevents corrosion damage to the spacer frame, effectively reduces thermal stress, and significantly lowers the risk of glass spontaneous breakage.
