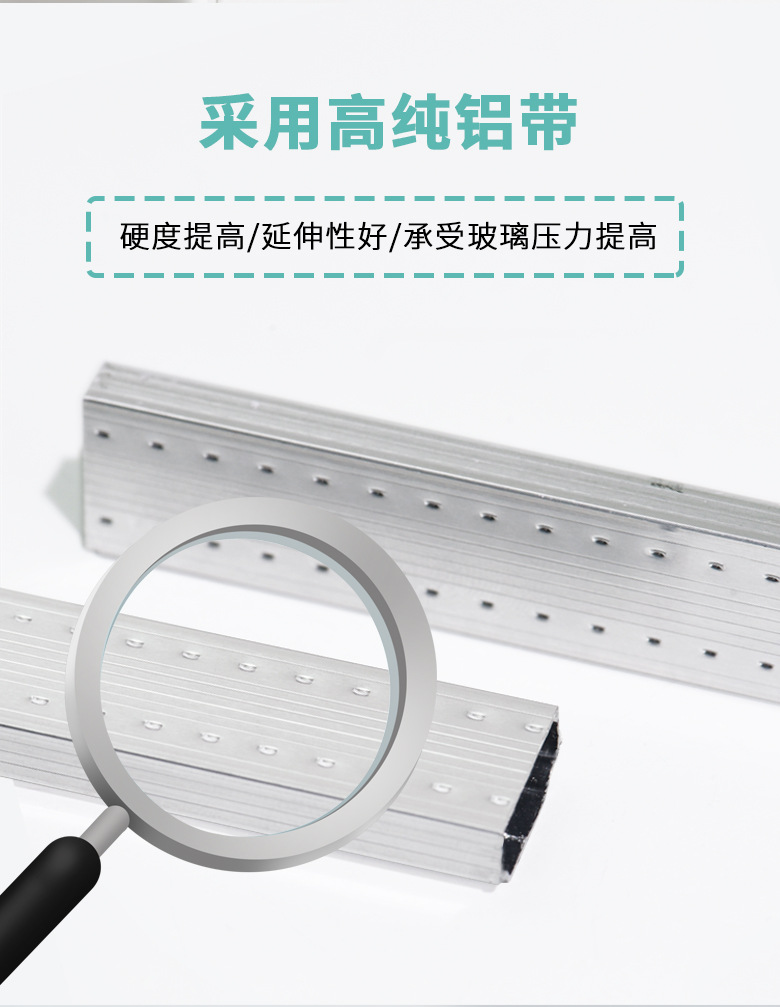

中空玻璃鋁隔條(不可折彎款) The Non-Bandable aluminum spacer bar

產品名稱：中空玻璃鋁條 Aluminum Spacer Bar

品牌：冀安篩網 JI'AN MESH

產品材質：鋁合金

Material?材質：1100H18

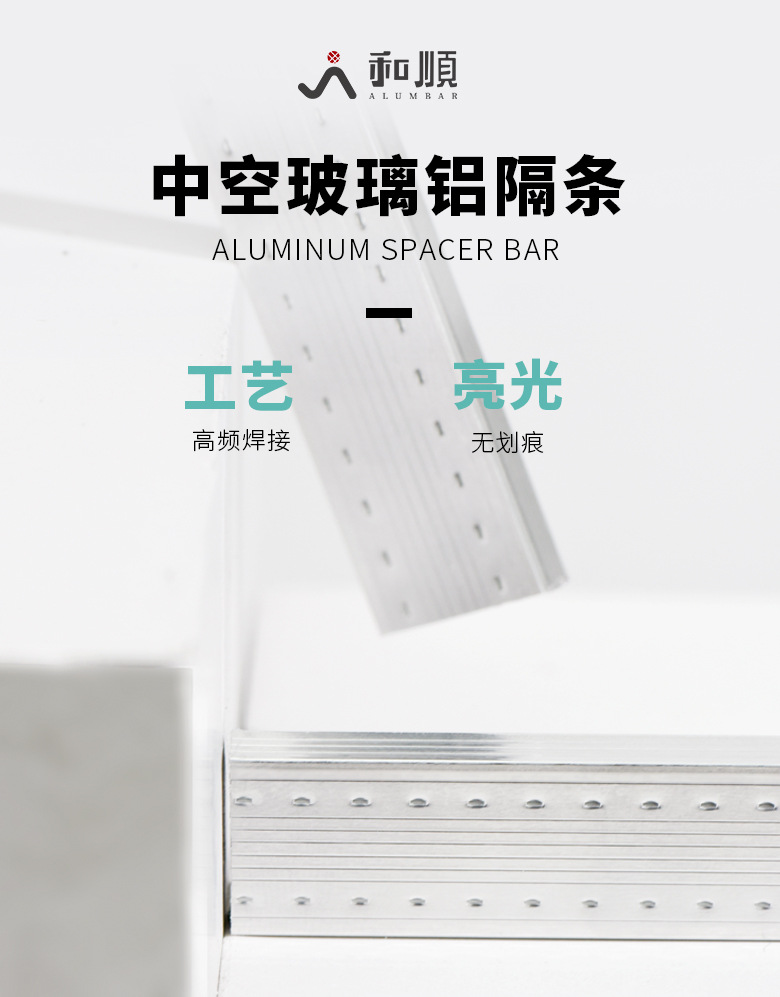

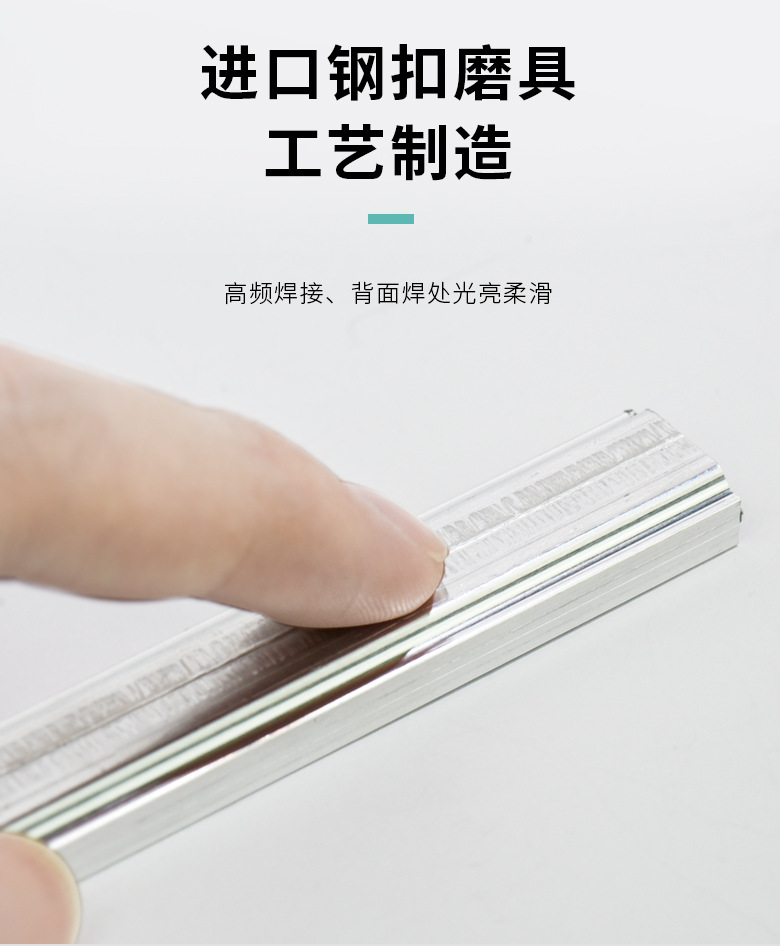

Process制造工藝：高頻焊接

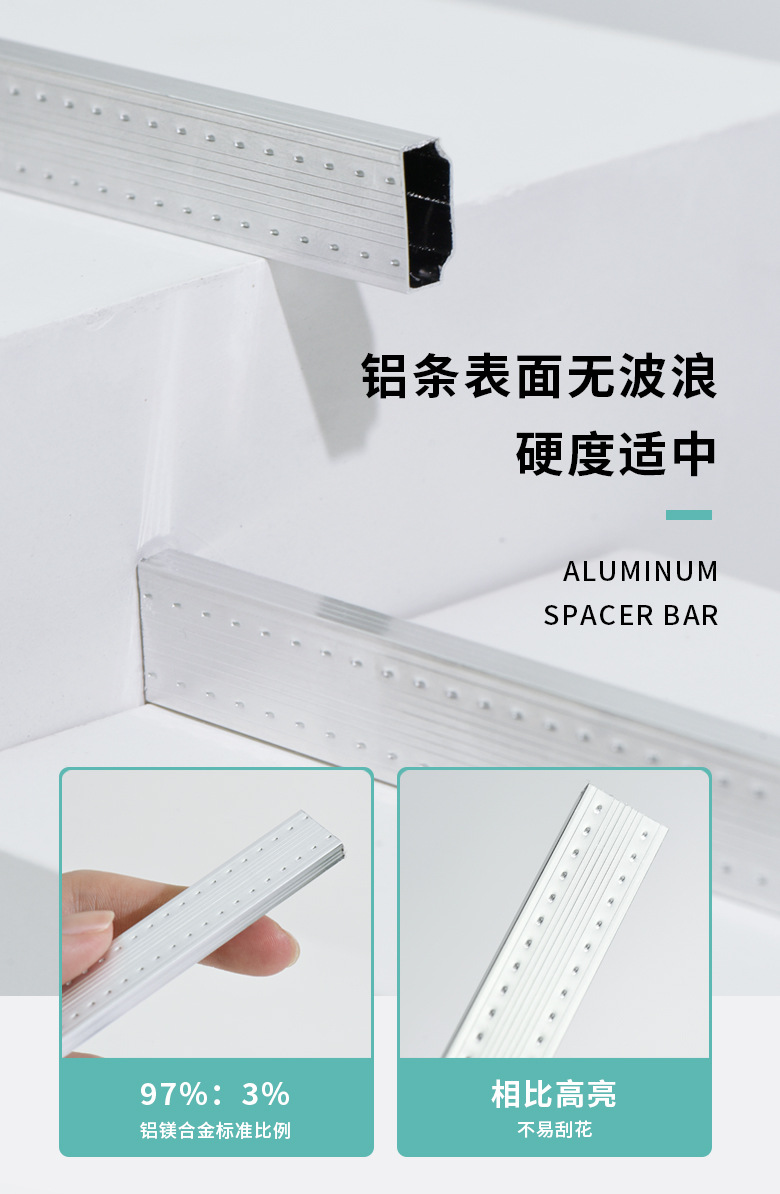

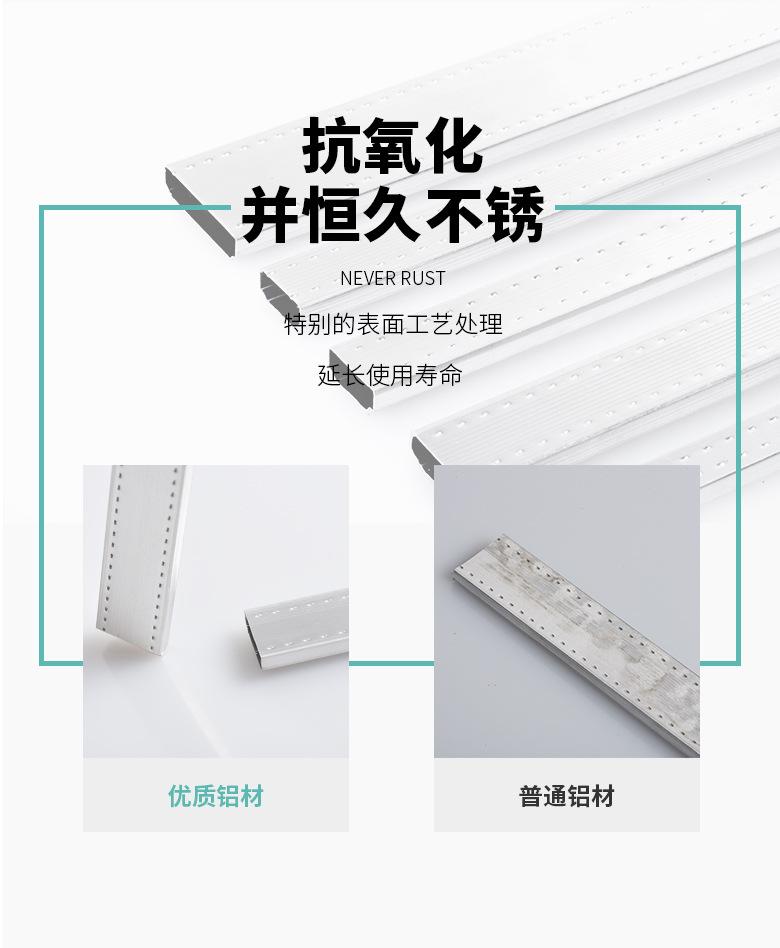

Surface Treatmen表面工藝：陽極氧化

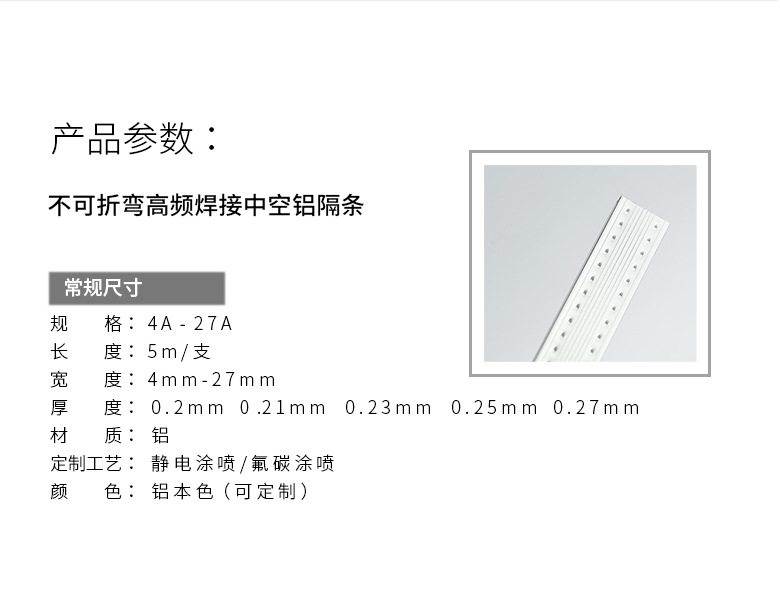

Items型號：4A-40A

Thickness壁厚：0.18mm-0.3mm，±0.025mm

Width寬度：4mm-40mm

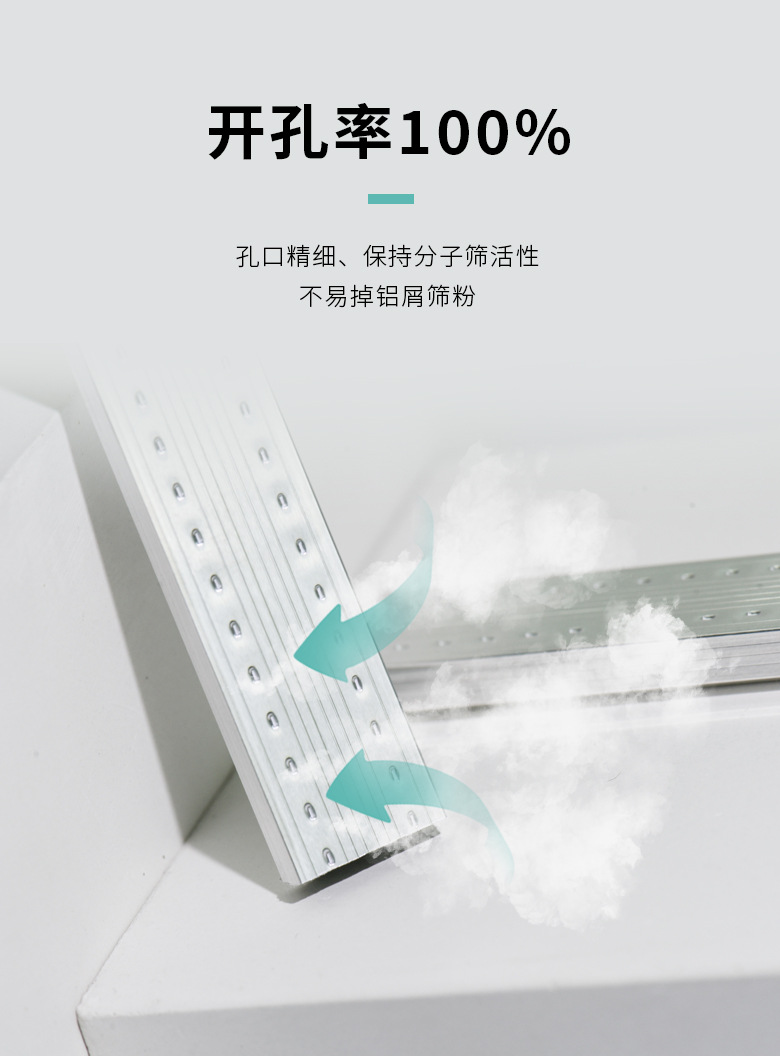

Punching Yield(%)沖孔合格率(%)：100%

Tensile Strength(MPa)抗壓強度(MPa):?莫氏五級??

Tensile Strength(MPa)抗拉強度(MPa):140-180MPa

Elongatio(%)n?延伸率(%)?：4%-6%

Packaging包裝：多層瓦楞紙箱

Items型號：12A

Thickness壁厚：0.2mm~0.3mm

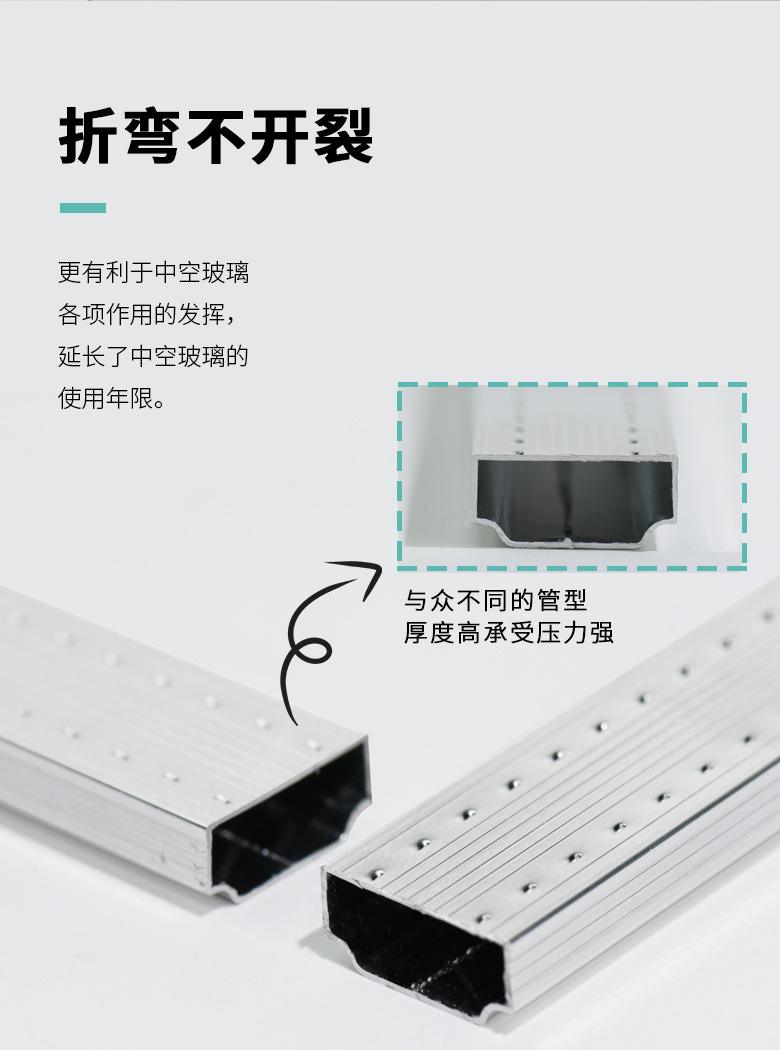

Cross-Section Width橫截面寬：11.35mm-11.5mm

Bilateral Shoulder Height雙側肩高：4.0mm~4.5mm

Section Height 截面高度：6.0mm~6.5mm

Single Length單支長度：5m/6m ±5mm

Air Permeability(%)氣孔透氣率(%)：95%

Side Camber(%)側邊弓形彎曲度(%)：≤0.2%

Side Wave Camber(%)側面波形彎曲度(%)：≤0.2%

Twist扭曲：≤0.5mm

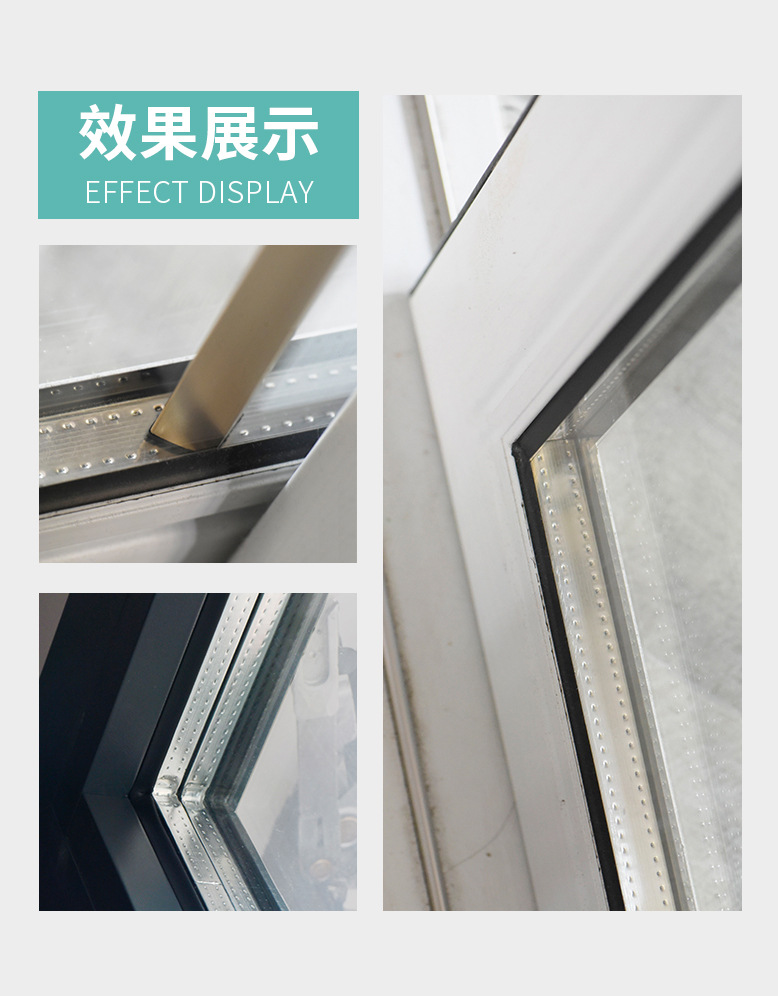

Product Features產品特點：中空玻璃的不可折彎鋁隔條，采用 1100 系列鋁合金，結合其不可折彎的設計，提供了出色的強度和直線度，增強了中空玻璃框架的完整性和美觀。這種鋁隔條經過特殊處理，具有亮麗的表面和均勻的孔透，有助于提升建筑物的外觀及其防水和隔熱性能。其安裝簡便，與塑料連接件兼容，有效節省了施工時間和成本，使其在建筑材料市場中廣受歡迎。

The non-bendable aluminum spacer bars for insulated glass, made from the 1100 series aluminum alloy, offer excellent strength and straightness due to their unbendable design, enhancing the integrity and aesthetic of the insulated glass frames. These spacer bars, specially treated, feature a bright surface and uniform porosity, aiding in improving the appearance of buildings as well as their waterproof and thermal insulation properties. Their easy installation and compatibility with plastic connectors significantly save construction time and costs, making them widely popular in the building materials market.
