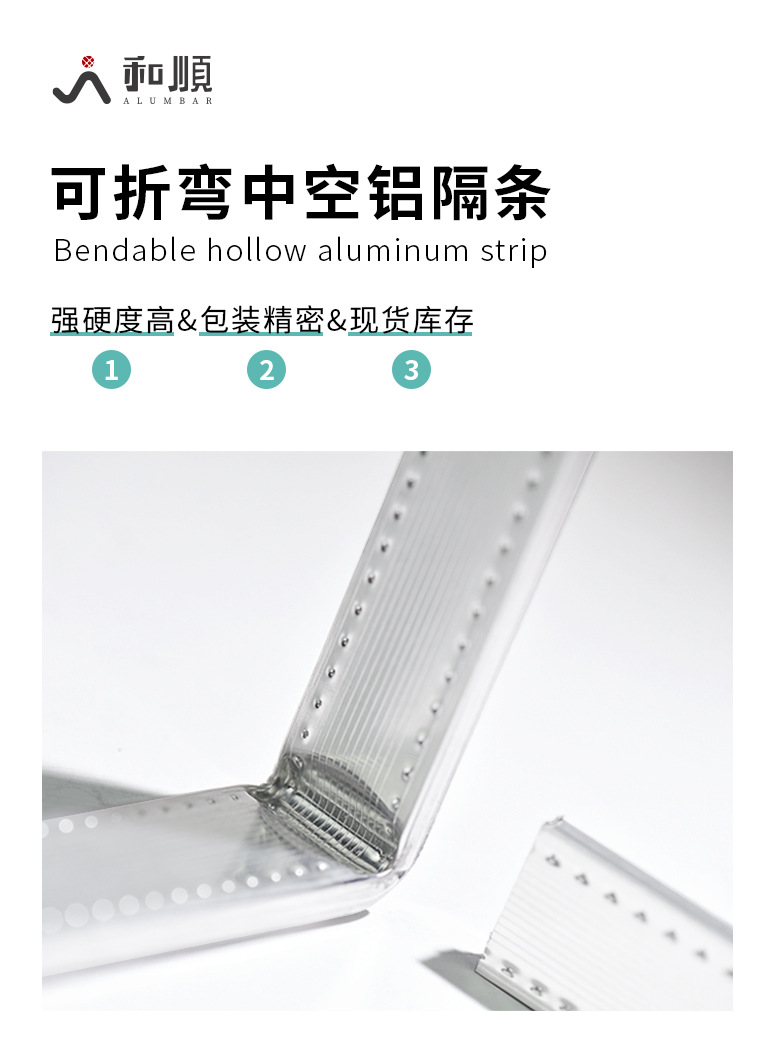

可折彎高頻焊接中空鋁隔條 Bendable HF Hollow Aluminum Spacer

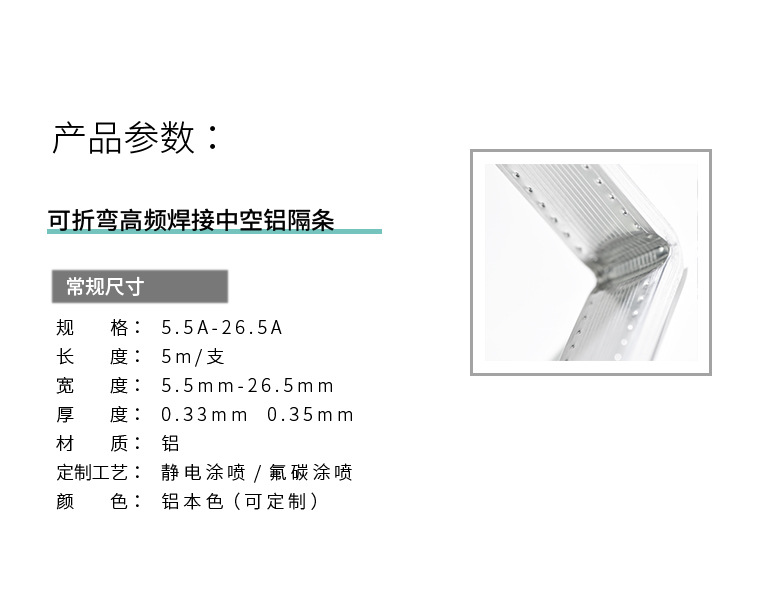

產品名稱:
可折彎高頻焊接中空鋁隔條 Bendable HF Hollow Aluminum Spacer
品牌:冀安篩網 JI'AN MESH
產品材質:3003鋁錳合金









Material材質:3003H24
Process工藝:高頻焊接
Surface Treatment表面工藝:陽極氧化
Items型號:6A-40A

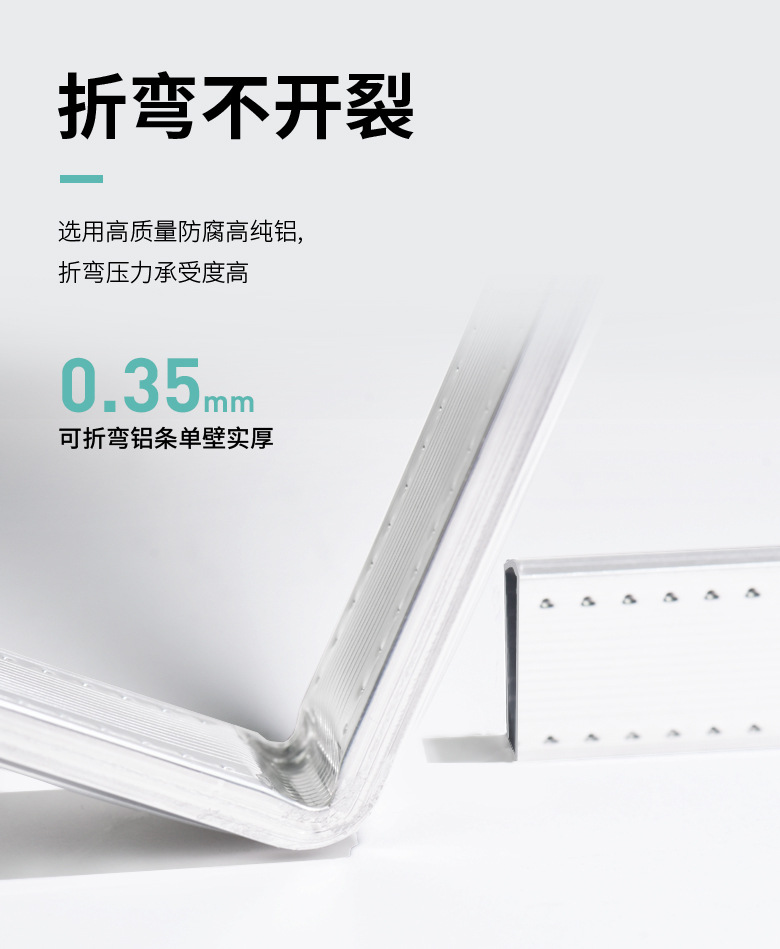

Thickness壁厚:單邊0.3-0.35mm,±0.025mm
Width寬度:6mm-40mm
Punching Yield(%)沖孔合格率(%):?100%
Compressive Strength(MPa)抗壓強度(MPa):?240 MPa??
Tensile strength(MPa)抗拉強度(MPa):莫氏五級
Elongation(%)?延伸率(%)?:8%-12%
Packaging包裝:多層瓦楞紙箱
Items型號:12A
Alloy Elongation(%)合金延伸率(%):10%~13%
Alloy Tensile Strength(N/mm2)合金抗拉強度(N/mm2):200~220N/mm2
Thickness壁厚:0.3mm~0.35mm
Cross-Section Width橫截面寬:11.5mm-11.65mm
Bilateral Shoulder Height 雙側肩高:4.0mm~4.5mm
Section Height 截面高度:6.5mm~6.65mm
Single Length單支長度:5m/6m ±5mm
Air Permeability(%)氣孔透氣率(%):95%
Positive Edge Camber(%) 正邊弓形彎曲度(%):≤0.2%
Side Wave Camber(%)側面波形彎曲度(%):≤0.2%
Twist扭曲:≤0.5mm
Product Features產品特點:

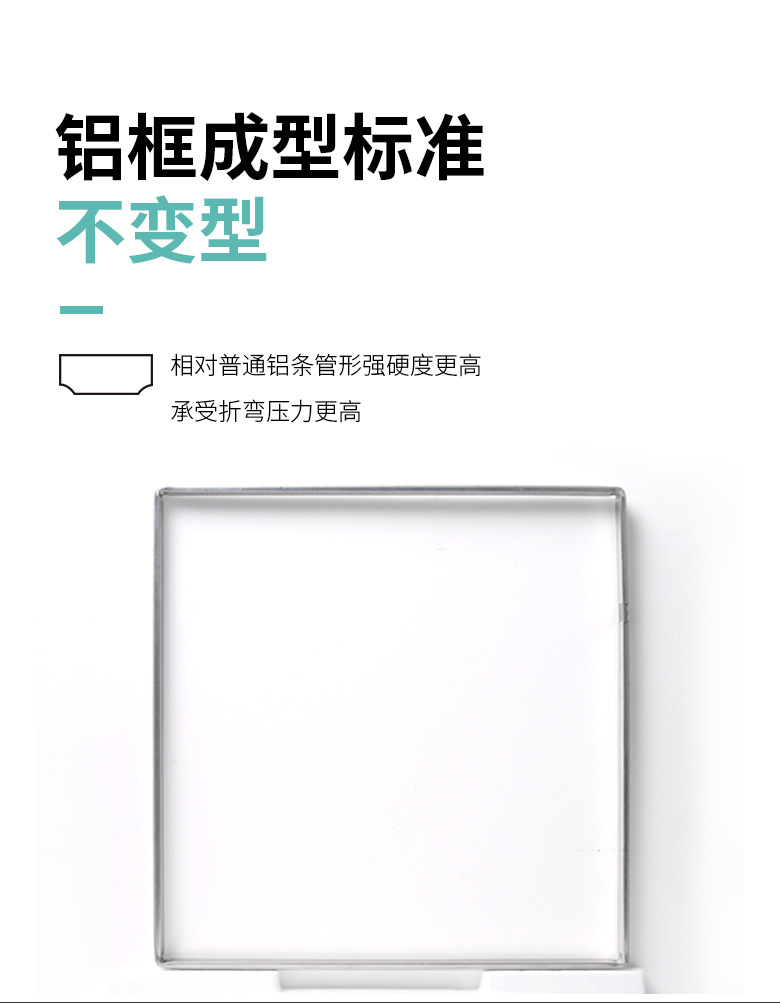

可折彎高頻焊接鋁間隔條選用進口3003鋁錳合金,比普通鋁條更防銹,防蝕,強度高,韌性好;可配合折彎設備連續折彎成任意角度的鋁框,保證分子篩活性,保證與各類膠有優異的粘接性;背面采用高頻直縫焊接工藝,不易刮花,降低了對自動折彎機傳送帶損耗;密封效果極好,不易漏氣、透水、延長了中空玻璃的使用壽命

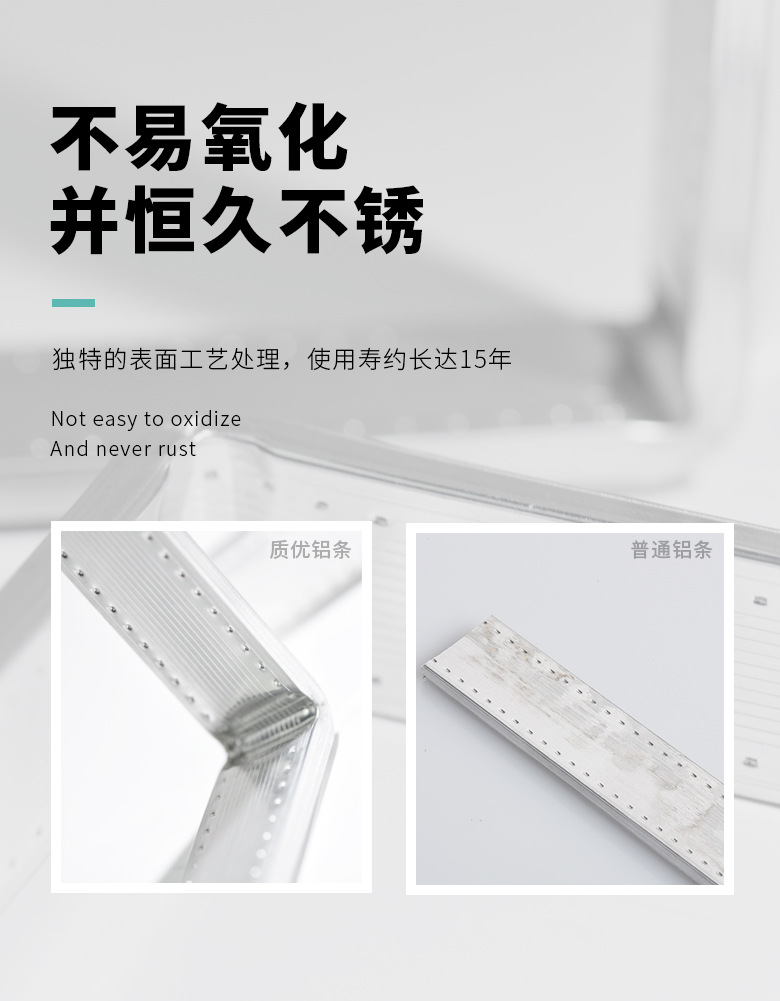

The bendable high-frequency welded aluminum spacer bar is made of imported 3003 aluminum-manganese alloy, offering superior rust resistance, corrosion resistance, high strength, and ductility compared to ordinary aluminum strips.

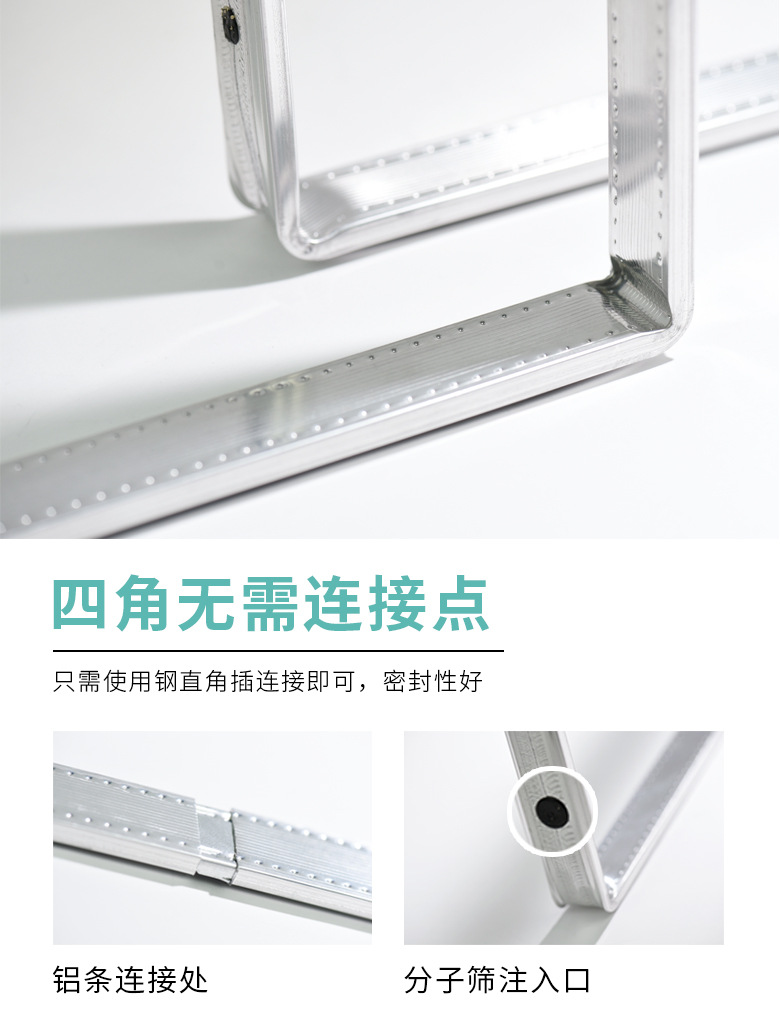

It can be continuously bent into any angle with bending equipment, ensuring molecular sieve activity and excellent adhesion to various sealants.

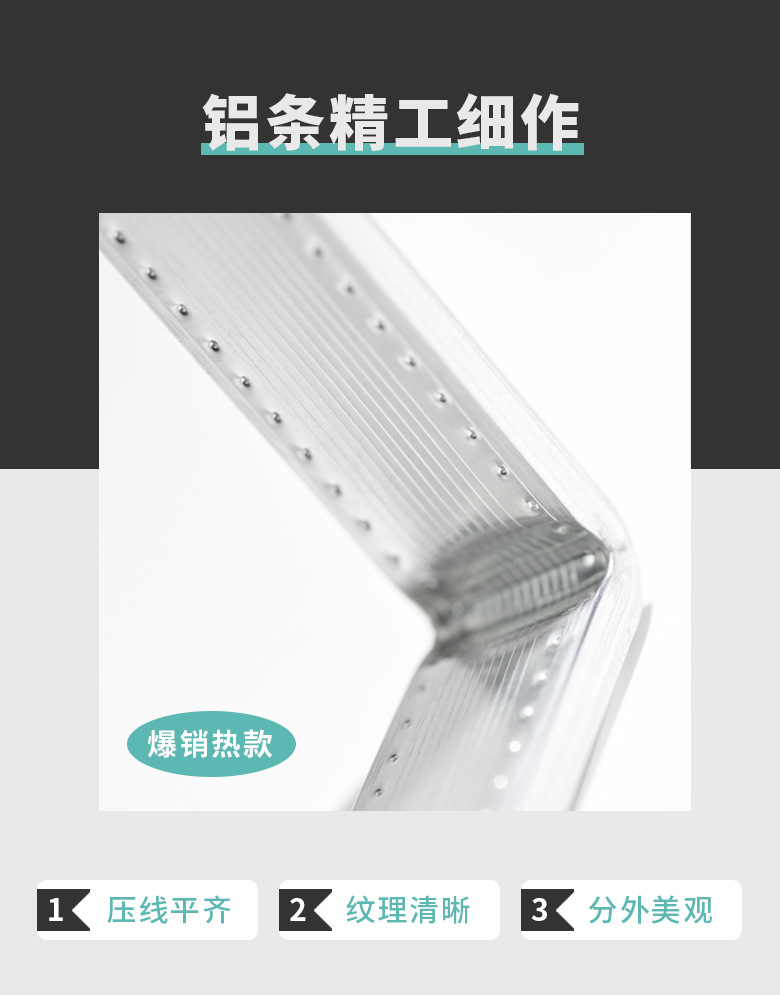

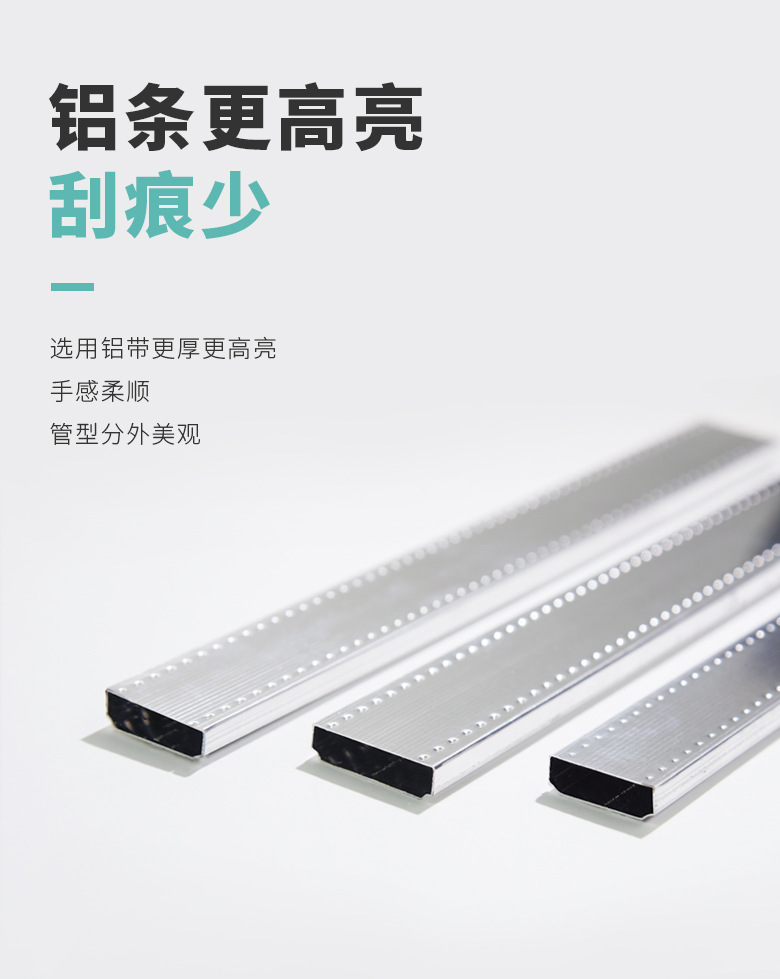

The backside features high-frequency straight-seam welding technology, minimizing surface scratches and reducing wear on automatic bending machine conveyors.

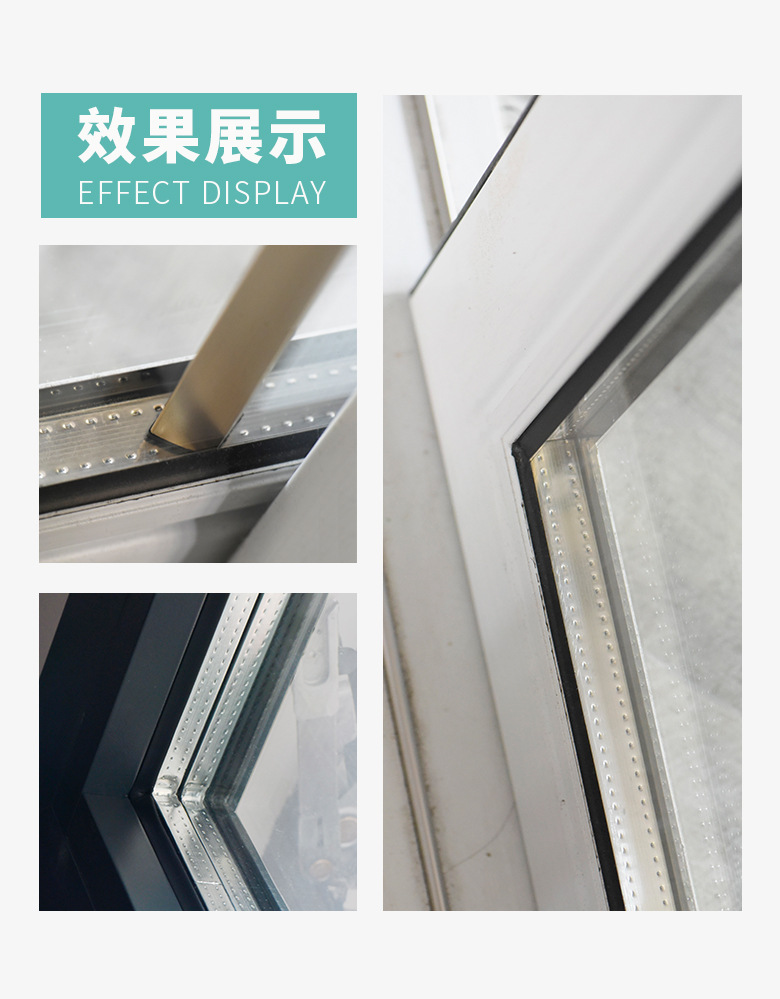

With exceptional sealing performance, it effectively prevents gas leakage and water penetration, significantly extending the service life of insulated glass units.
