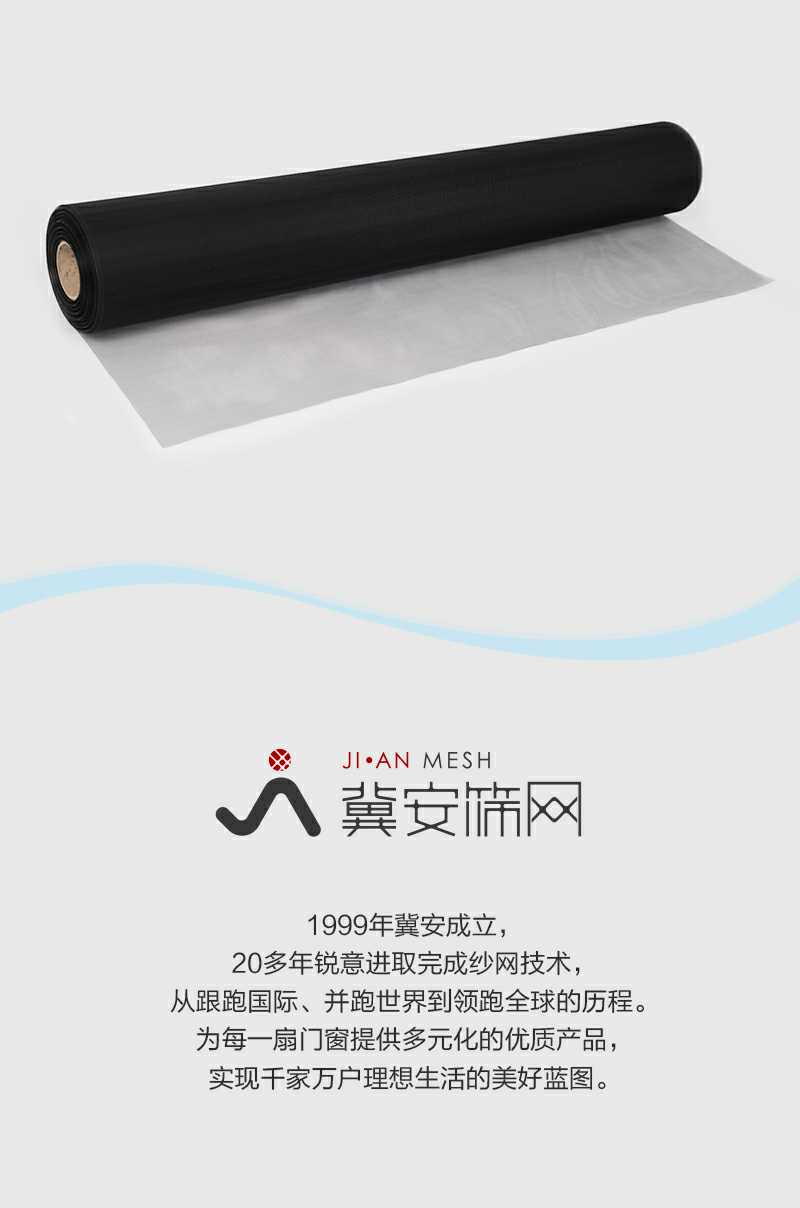

產品名稱：柔鋼0.09mm紗網 FlexInvis invisble ss mesh
品牌名稱：冀安篩網 JI'AN MESH

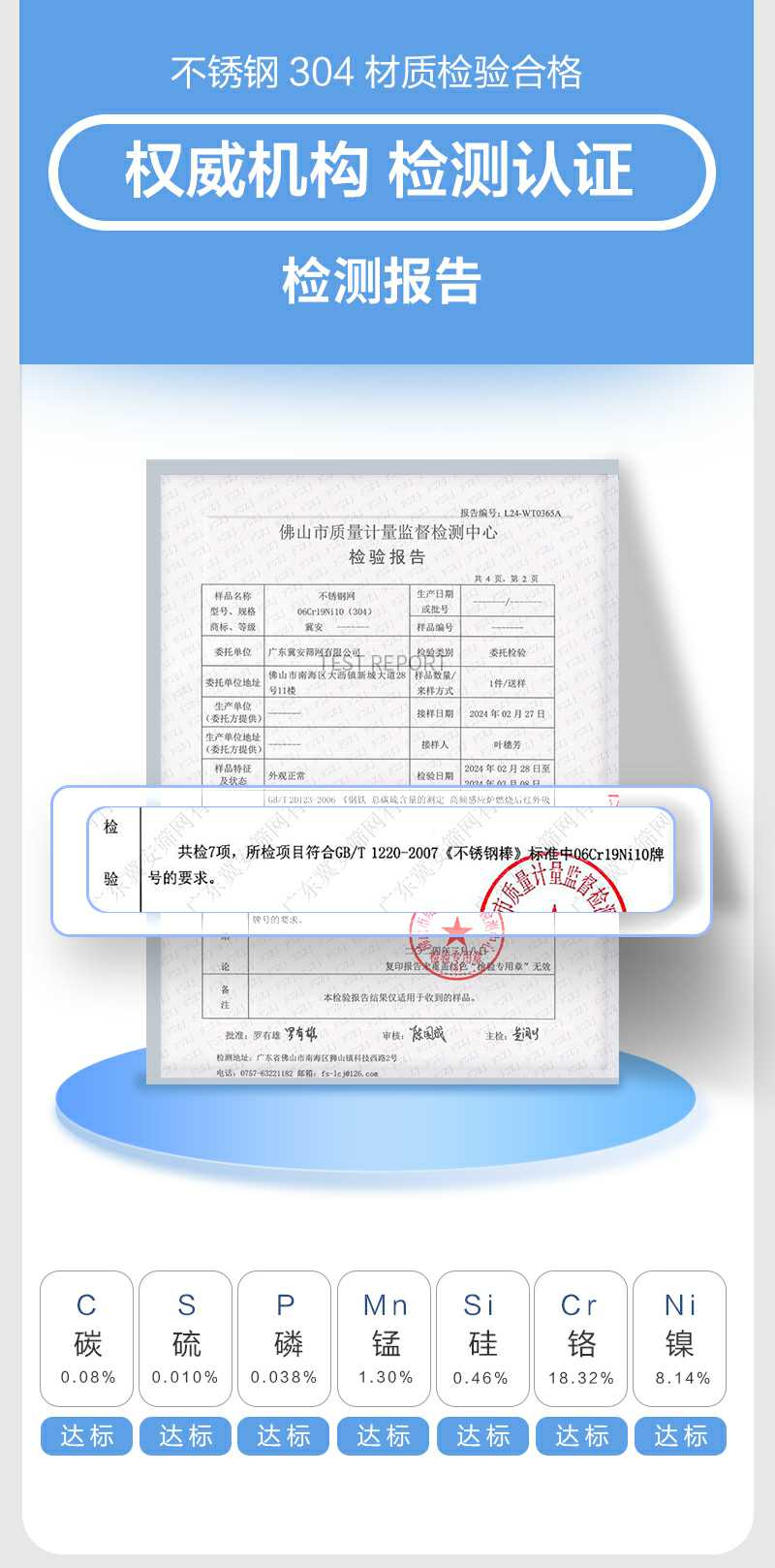

產品材質：國標304，通過質量技術監督局7項元素鑒定
Material類型(材質): 304不銹鋼 304 Stainless steel
Process工序：拔絲工藝 Wire drawing process
Warp thread count 經線密度：23目 Mesh
Warp thread count 經線密度：21目 Mesh

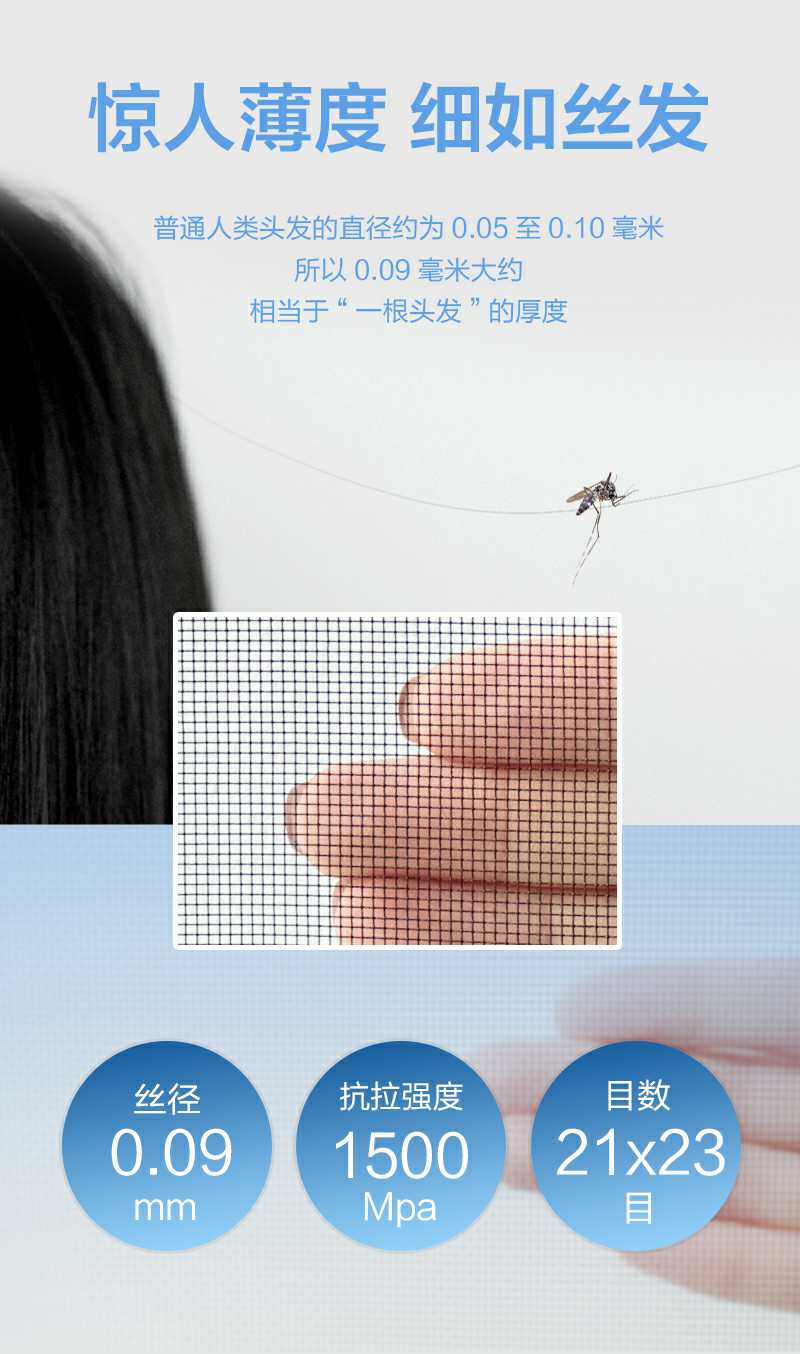

Warp wire diameter 經線絲徑：0.09mm
Weft wire diameter 緯線絲徑：0.09mm
Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：0.15kg
Elogation (%)延展率(%)：≥15%
Coating涂層：復合樹脂 Composite resin
Tensile strength（MPa）抗拉強度（MPa）：1350-1550MPa
Coating Process 噴涂工藝：靜電噴涂 Electrostatic spraying
Coating thickness（μm）涂層厚度（μm）：25μm
Curing conditions 固化條件：200°C / 2m/min 平爐Flat furnace
Color顏色：黑色 Black
Packing包裝：紙箱 Carton
Ventilation rate通風率：77.2%
Open area ratio開孔率：77.2%
Aperture size孔徑：1.01mm
Light transmittance透光率：84.1%
Ultraviolet blocking rate紫外線阻隔率：68.3%
Infrared blocking rate紅外線阻隔率：66.7%

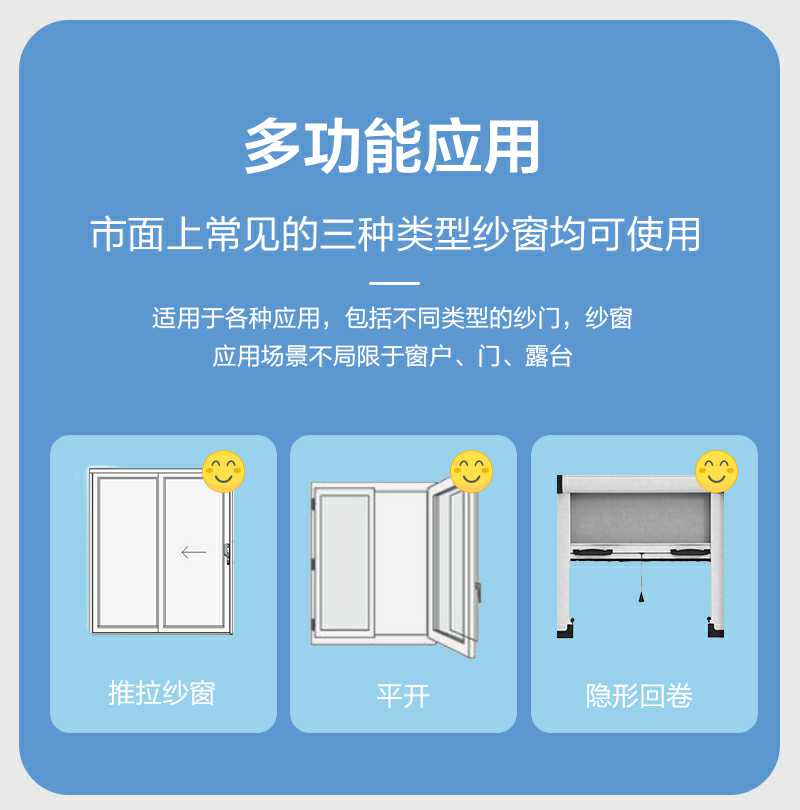

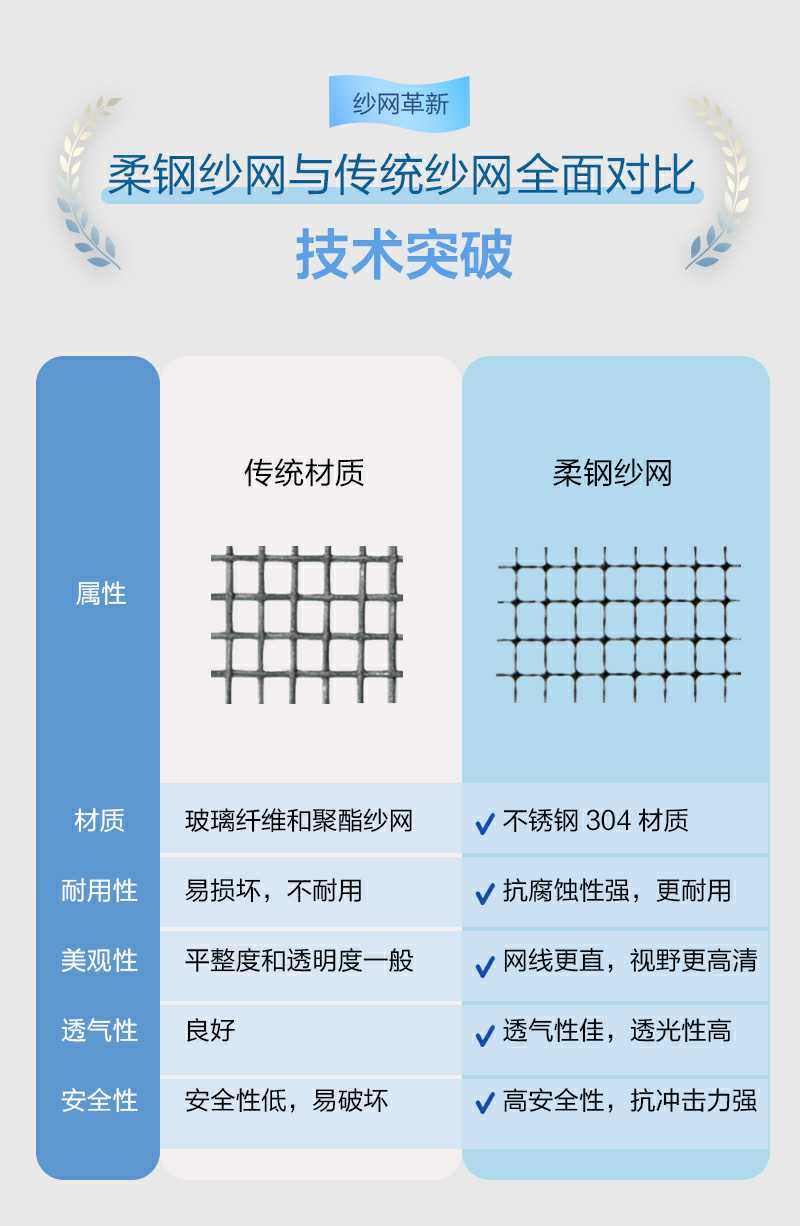

Product Features產品特點：柔鋼紗網FlexInvis是一款專為隱形回卷紗窗設計的高性能金屬紗網，采用0.09mm的細鋼絲編織而成，具備一定的柔軟性，適應回卷紗窗的需求。相較于傳統使用的玻璃纖維和滌綸紗網，柔鋼紗網FlexInvis憑借其金屬特性，能夠更容易打開市場局面，因?yàn)橄M(fèi)者對金屬材料的認可度較高。此外，產品的延展性從原有的55%降低至15%，有效解決了熱脹冷縮和拉伸后回卷紗窗回收困難的問題。其表面使用啞光千江粉末涂層，隱形效果出色，透光率與通風率都優于傳統材料。更為細密的網目設計使其通風效果達到77.2%，極大提升了用戶體驗。
FlexInvis is a high-performance metal mesh designed for retractable invisible screens, made from 0.09mm fine steel wire. It offers flexibility to meet the needs of retractable screens. Compared to traditional fiberglass and polyester mesh, FlexInvis, with its metal properties, is more marketable due to higher consumer acceptance. Its extensibility has been reduced from 55% to 15%, solving the issues of thermal expansion and difficult retraction. The matte powder coating enhances invisibility, with better light transmission and airflow than traditional materials. The finer mesh design boosts ventilation to 77.2%, greatly improving user experience.
